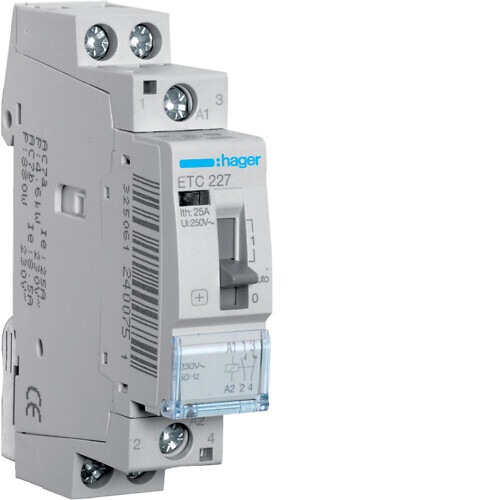

CONTACTOR ETC227 1NO+1NC 25A C.230VAC TF
Product code
3748018
Night & Day Contactor 25A, 1NO+1NC, 230V
Module contactor with switch for tariff-controlled heating of water heaters/boilers. Equipped with one normally closed and one normally open 25A contact. Control voltage 230 VAC. Manual switch can be used to override the water heater's resistance or to force the contactor off. The contactor returns from position 1 to position A when voltage is reapplied to the contactor's control coil. This function prevents possible dry boiling of the water heater. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Installation relay (EC001652)
Width in number of modular spacings1
Built-in depth60 mm
Number of contacts as normally open contact1
Number of contacts as normally closed contact1
Max. incandescent lamp load1900 W
Max. load fluorescent lamp950 VA
Max. load fluorescent lamp (Duo circuit)1990 VA
Max. load fluorescent lamp (parallel compensated)810 VA
Product codes
SAPATB549
STK3748018
PLC3748018
GTIN/EAN3250612400751
Manufacturer part numberETC227
Vendor material number3748018
Basic information
Package measurements (L x W x H)65 x 35.8 x 85.4 mm
Package volume0.16 l
Package weight0.129 kg
Base uniteach
Package units1 / 108 / 2592
Package contents–
UNSPSC39121529
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0241
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
