CORNER TRUNKING TEHALIT.SL EK40040 PVC EK40X40X2500 WHITE
Product code
1476100

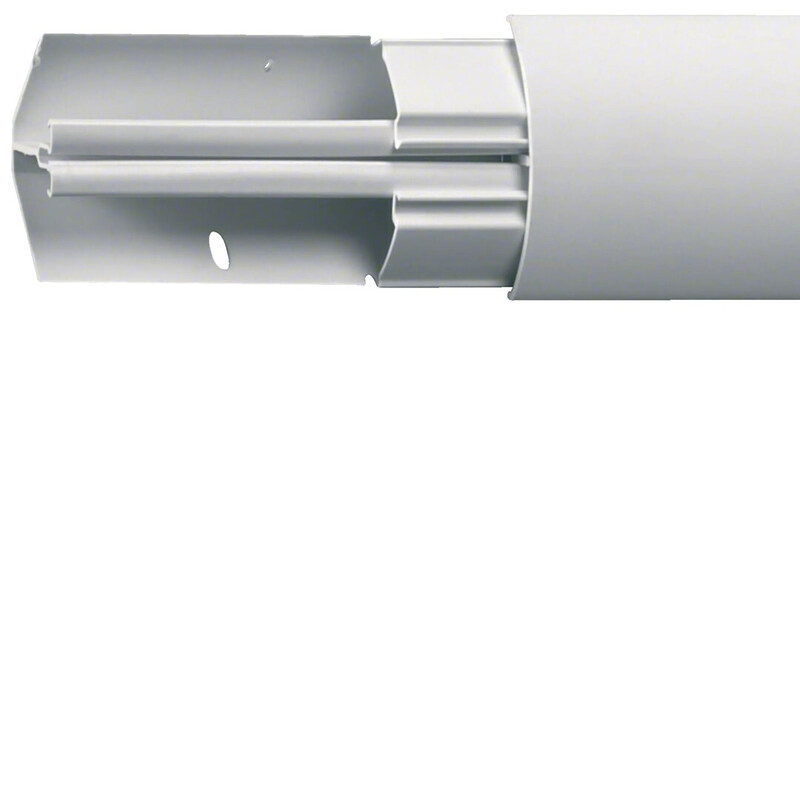

Corner mounting channel made of plastic for routing cables along wall and ceiling corners and connecting to the leg channel system. Consists of a base with two separate conductor spaces and an adjustable height cover. Base has holes spaced 125 mm apart. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Corner duct (EC001942)
Height40 mm
Width40 mm
Leg length40 mm
Length2500 mm
Usable cross section800 mm²
Base with partitionFixed
Number of permanent partitions1
Number of plug-in partitions0
With cable fixing clipyes
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
Halogen freeno
ColourWhite
RAL-number9016
With protective foilno
Product codes
SAPCLX120
STK1476100
PLC1476100
GTIN/EAN4012740017398
Manufacturer part numberEK4004009016
Vendor material number1476100
Basic information
Package measurements (L x W x H)1000 x 0 x 0 mm
Package volume1.6 l
Package weight0.411 kg
Base unitMeter
Package units2.5 / 40 / 800
Package contents–
UNSPSC39131706
BrandHAGER
VendorUTU OY
