Roll over image to zoom in

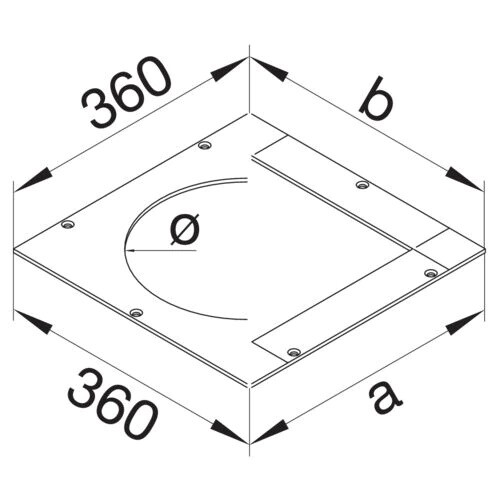

COVER WITH HOLE FE 360X360/200X200 ZN
Product code
1461106
mounting lid for floor box size 3 Q06
Installation box for general-purpose grease according to DIN EN 50085-1 and DIN EN 50085-2-2, as a system component.
Features- nominal size: 340 mm
- width of installed product: 360 mm
- length: 360 mm
- installation opening: round
- cover with installation opening: yes
- floor cleaning: dry
- material: steel sheet
- material thickness: 4 mm
- dimension a: 200 mm
- dimension b: 200 mm
Product details
Technical specifications
Product class (ETIM)Mounting cover for subfloor draw-in box (EC001906)
Nominal dimension340 mm
Width360 mm
Length360 mm
Mounting openingSquare
Cover mounting openingyes
Floor maintenanceDry
Material thickness4 mm
MaterialSteel
Product codes
SAPANT400
STK1461106
PLC1461106
GTIN/EAN4012002238301
Manufacturer part numberUDM3200Q06
Vendor material number1461106
Basic information
Package measurements (L x W x H)360 x 360 x 4 mm
Package volume0.518 l
Package weight2.83 kg
Base uniteach
Package units1
Package contents–
UNSPSC39131605
BrandHAGER
VendorUTU OY
