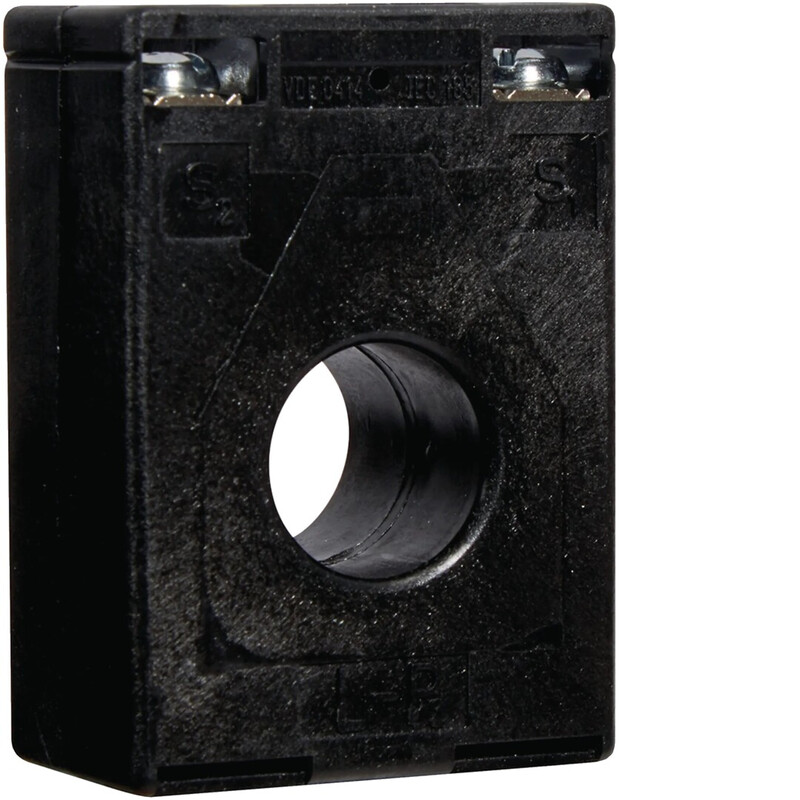

CURRENT TRANSFORMER LVZ00SE 100/5 CL1 NH00 3PC
Product code
6773520
CT LV W00 185mm 100/5A 2,5VA Cl.1
Current transformer 100/5A 2.5VA class 1, suitable for installation under Hager NH00 fuse switchgear with high rail mounting brackets. Equipped with M5 screw terminals. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelPipe stick current converter
Rated primary current100 A
Rated secondary current5 A
Rated secondary apparent power2.5 VA
Accuracy class1
Overcurrent limiting factorFS 5
Calibratedno
With contact protectionyes
Opening diameter21 mm
Snap mountingno
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPCER265
STK6773520
PLC6773520
GTIN/EAN4049857055135
Manufacturer part numberLVZ00SE100-5K1
Vendor material number6773520
Basic information
Package measurements (L x W x H)60 x 105 x 78 mm
Package volume0.491 l
Package weight0.66 kg
Base unitBag
Package units1 / 1080 / 1080
Package contents3 each
UNSPSC39121003
BrandHAGER
VendorUTU OY
