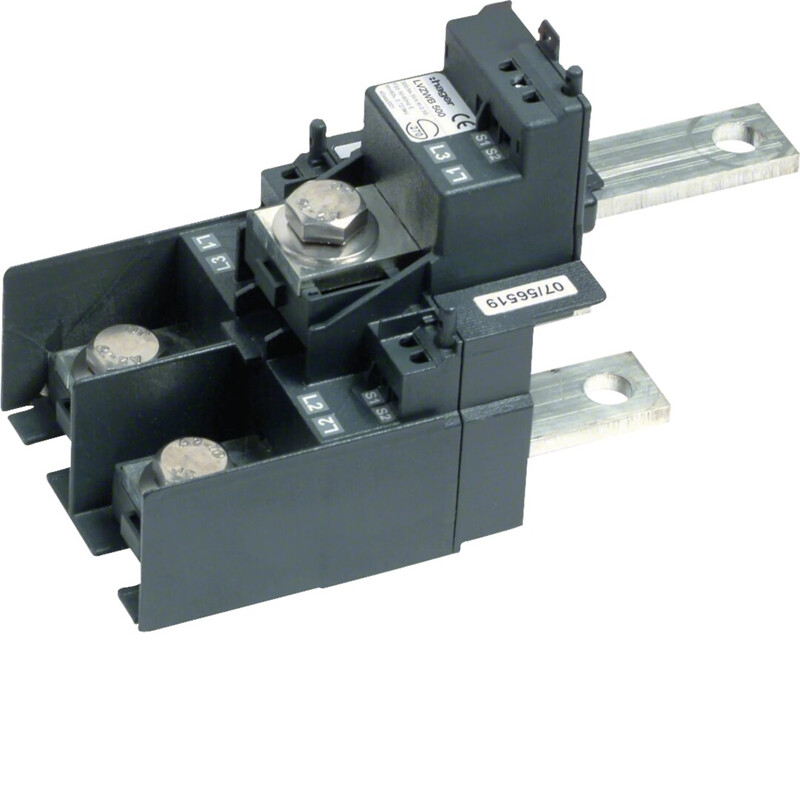

CURRENT TRANSFORMER LVZWB500 3PH 500/5 CL0,5S
Product code
6773542
CT LV WB1-3 3P 500/5A 5VA Cl.0,5S
Current transformer block equipped with Hager bolted terminals for fuse switch disconnectors sizes NH1-3, 3-phase transformation ratio 500/5A, maximum load per channel 5VA, accuracy class 0.5S. Easily retrofittable to the fuse switch disconnector output, transformer dimensions according to DIN EN 60044-1. S1 and S2 terminals and voltage easily accessible for measurement. Bolted connection M12, includes screws; terminal covers to be ordered separately. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Current transformer (EC002048)
ModelPipe stick current converter
Rated primary current500 A
Rated secondary current5 A
Rated secondary apparent power5 VA
Accuracy class0.5S
Overcurrent limiting factorFS 5
Calibratedno
With contact protectionyes
Snap mountingno
With copper railno
Secondary connectionScrew connection
Number of primary inputs1
Product codes
SAPCER269
STK6773542
PLC6773542
GTIN/EAN4049857138999
Manufacturer part numberLVZWB500
Vendor material number6773542
Basic information
Package measurements (L x W x H)204 x 99 x 136 mm
Package volume2.747 l
Package weight1.65 kg
Base uniteach
Package units1 / 100
Package contents–
UNSPSC39121003
BrandHAGER
VendorUTU OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.2266
GWP, uniteach
Source for GWP dataEPD
