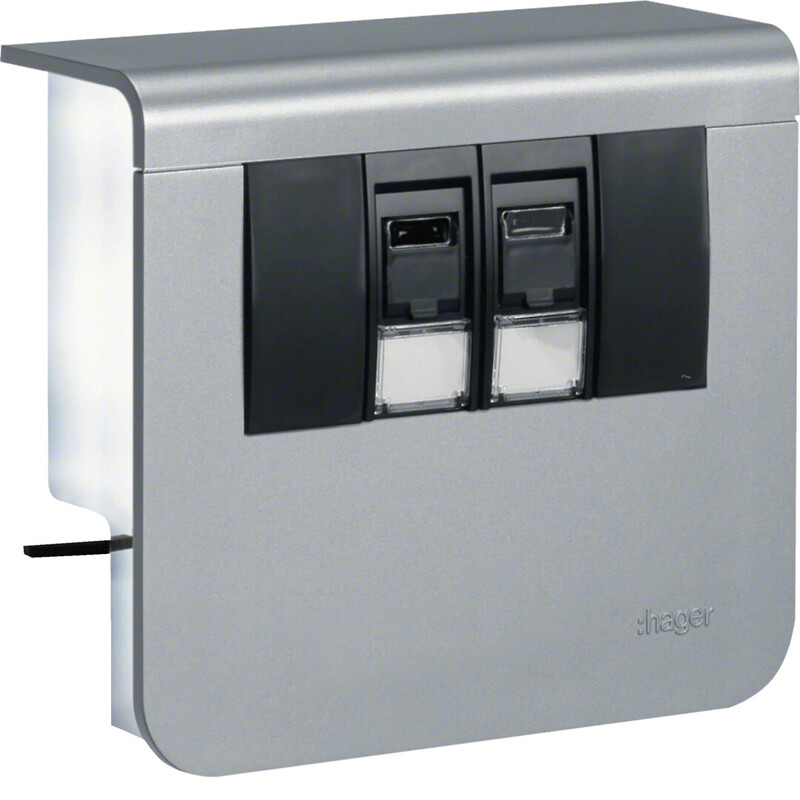

DATA OUTLET PLINTH SL20055 2XRJ45 CAT6 ALU
Product code
1427231
acc.box SL20055 2 x Cat.6 alu
The SL wall-mounted channel system's wall-mounted shelves can be equipped with modern and low-profile shelf mounting boxes. Their mirrored surfaces make the appearance even lighter, allowing the furniture to blend naturally into the wall surface and appear as if floating above the wall-mounted shelf. The furniture is mounted to the wall without the need for drilling, using quick-install screws attached to the top edge of the wall-mounted channel frame. In addition to traditional power outlets, data, AV, and antenna boxes, the range includes combination units with surge protection, LED lighting, and motion sensors. The shelf box installation is completed by attaching a base plate below the shelf box, chosen to match the channel color, which conceals the shelf frame beneath the furniture. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Appliance box for skirting duct (EC000079)
Height baseboard duct55 mm
Depth plinth skirting duct20 mm
Number of device units2
Equipped withData net connection
Mounting method installation unitAlready assembled
Mounting directionHorizontal
MaterialPlastic
Halogen freeyes
Anti-bacterial treatmentno
ColourAluminium
RAL-number0
DecorationOther
Degree of protection (IP)IP40
Impact strengthIK07
Operating temperature5-60 °C
Product codes
SAPAMH916
STK1427231
PLC1427231
GTIN/EAN4012740894449
Manufacturer part numberSL20055907D1
Vendor material number1427231
Basic information
Package measurements (L x W x H)128 x 116 x 48 mm
Package volume0.713 l
Package weight0.2 kg
Base uniteach
Package units1 / 4 / 352
Package contents–
UNSPSC39121308
BrandHAGER
VendorUTU OY
