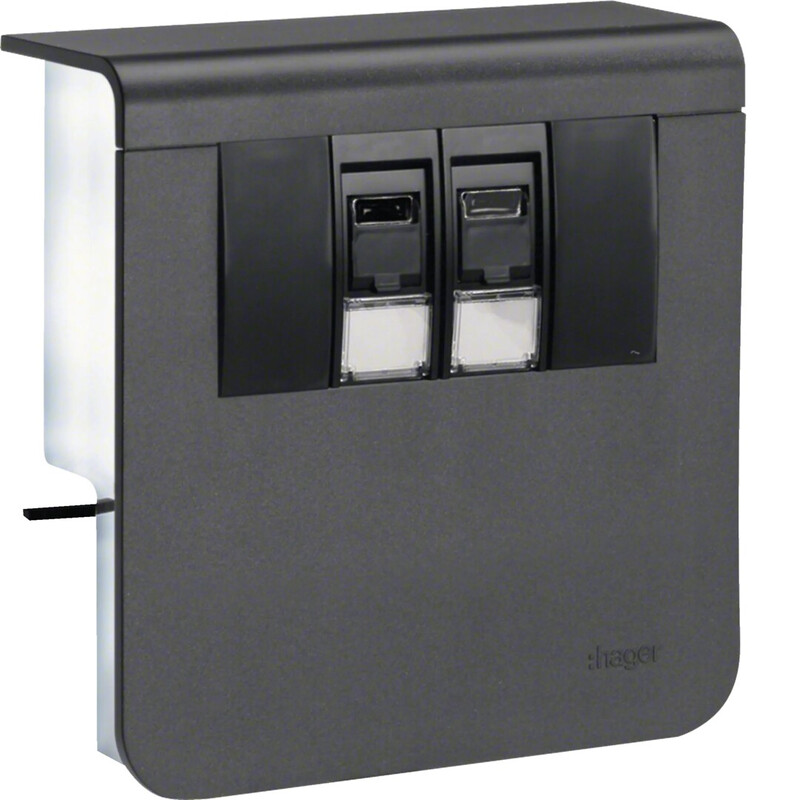

DATA OUTLET PLINTH SL20080 2XRJ45 CAT6 BLACK

Product code
1427334
acc.box SL20080 2 x Cat.6 black
The SL wall-mounted channel system's wall-mounted shelves can be equipped with modern and low-profile shelf mounting boxes. Their mirrored surfaces make the appearance even lighter, allowing the furniture to blend naturally into the wall surface and appear as if floating above the wall-mounted shelf. The furniture is mounted to the wall without the need for drilling, using quick-install screws attached to the top edge of the wall-mounted channel frame. In addition to traditional power outlets, data, AV, and antenna boxes, the range includes combination units with surge protection, LED lighting, and motion sensors. The shelf box installation is completed by attaching a base plate below the shelf box, chosen to match the channel color, which conceals the shelf frame beneath the furniture. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Appliance box for skirting duct (EC000079)
Height baseboard duct80 mm
Depth plinth skirting duct20 mm
Number of device units2
Equipped withData net connection
Mounting method installation unitAlready assembled
Mounting directionHorizontal
MaterialPlastic
Halogen freeyes
Anti-bacterial treatmentno
ColourOther
RAL-number9011
DecorationNone
Degree of protection (IP)IP40
Impact strengthIK07
Operating temperature5-60 °C

Product codes

SAPAMI020
STK1427334
PLC1427334
GTIN/EAN4012740895507
Manufacturer part numberSL200809079011
Vendor material number1427334

Basic information

Package measurements (L x W x H)128 x 130 x 48 mm
Package volume0.799 l
Package weight0.25 kg
Base uniteach
Package units1 / 4 / 384
Package contents
UNSPSC39121308
BrandHAGER
VendorUTU OY

Environment and safety

Manufacturer

NameUTU Oy
Postal addressAhjontie 1, 28400 Ulvila
