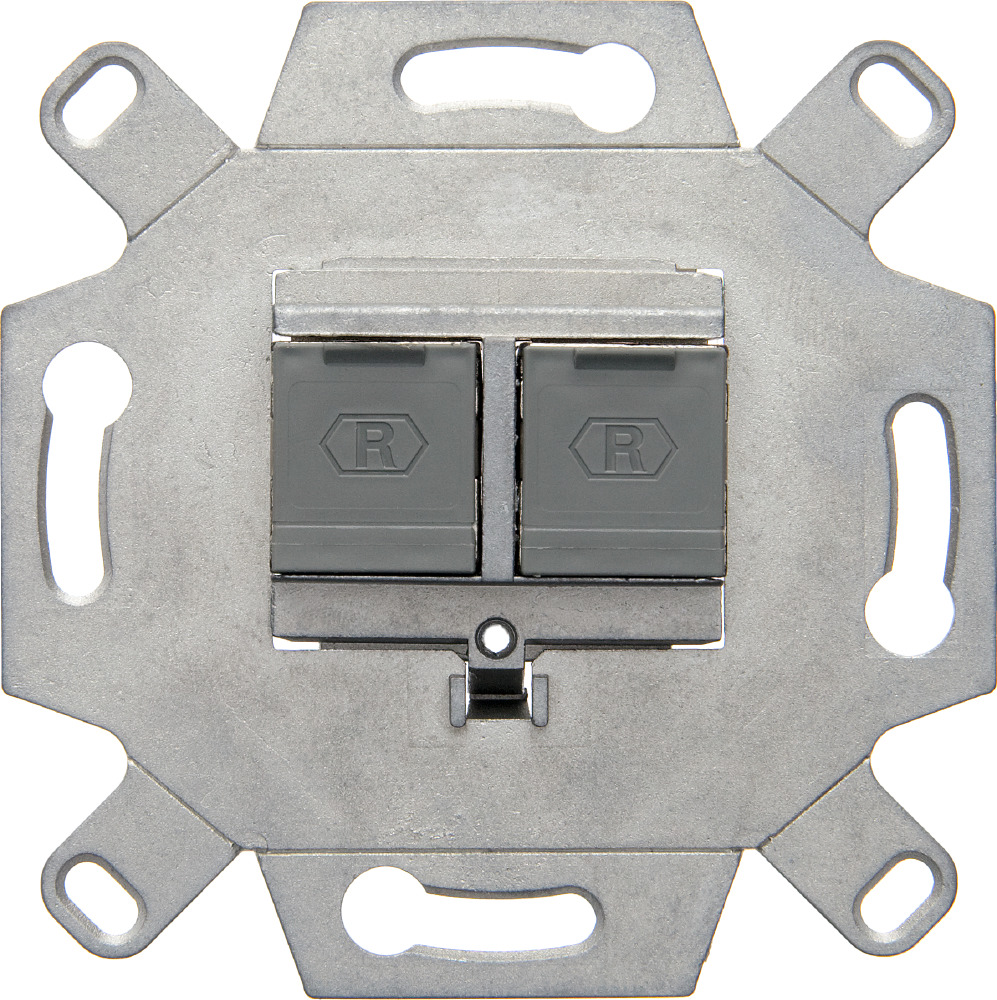

DATA SOCKET OUTLET 2xRJ45 Cat6A iso STP mod.
Product code
7242114
Modular telephone socket 8/8-pin shielded, zinc die-cast housing, Cat.6A, class EA, shielded, PoE+ compatible, with 360° interference protection and strain relief, compatible with RJ45 connectors, with dust protection covers and IDC connectors. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Data communication connection box copper (twisted pair) (EC001264)
Surface mountingno
Flush-mounted installationyes
Duct installationyes
Floor box/subfloor mountedyes
Type of fasteningScrewing
Assembly arrangementBasic element
Type of connector2x RJ45 8(8)
With buses/couplingsyes
Suitable for number of connectors2
Category6A (IEC)
Connection typeInsulation displacement connector
Shielded busesyes
Separate earthing connectionyes
With label spaceno
Compatible with third-party coversyes
Product codes
SAPCCH597
STK7242114
PLC7242114
GTIN/EAN4011334345534
Manufacturer part number4588
Vendor material number7242114
Basic information
Package measurements (L x W x H)80 x 60 x 80 mm
Package volume0.384 l
Package weight0.074 kg
Base uniteach
Package units1
Package contents–
UNSPSC30161801
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0102
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
