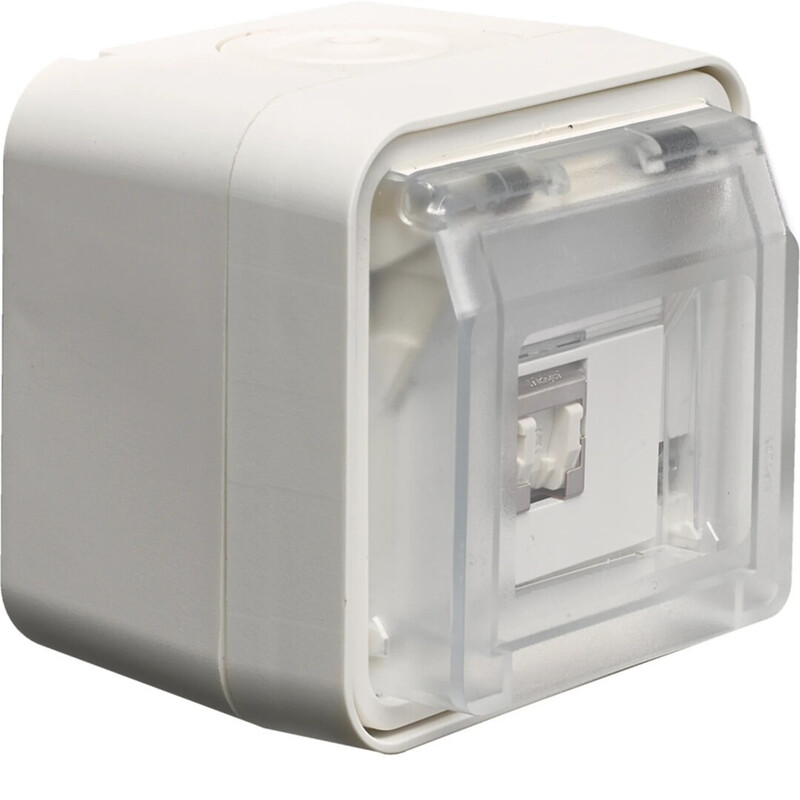

DATASOCKET OUTLET 1xRJ45 Cat 6 STP IP55 white
Product code
7242187
Complete Product wit Systo Adapter: Syst
Telerasia W.1 surface mount, 1-part Category 6, pure white
Surface mountable telerasia. 8-pin Cat. 6/Class E according to DIN EN 50173-1, with transparent protective cover, toolless connection with cutting connectors, shielded and with strain relief, compatible with RJ11/RJ12/RJ45 male connectors, suitable for PoE+ use, with straight connector.
Transmission bandwidth: max. 250 MHz
Operating temperature: -40 ... +30 °C
Color: pure white matte This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Data communication connection box copper (twisted pair) (EC001264)
Surface mountingyes
Flush-mounted installationno
Duct installationno
Floor box/subfloor mountedno
Type of fasteningScrewing
Assembly arrangementBasic element with complete housing
Type of connectorRJ45 8(8)
With buses/couplingsyes
Suitable for number of connectors1
Category6
ColourWhite
RAL-number9010
Connection typeInsulation displacement connector
Shielded busesyes
Separate earthing connectionyes
Product codes
SAPCCH514
STK7242187
PLC7242187
GTIN/EAN4011334404545
Manufacturer part number14093502
Vendor material number7242187
Basic information
Package measurements (L x W x H)76 x 76 x 76 mm
Package volume0.375 l
Package weight0.136 kg
Base uniteach
Package units1 / 30 / 1200
Package contents–
UNSPSC30161801
BrandHAGER
VendorUTU OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Features
Made from PVCNo
Halogen freeYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0187
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
