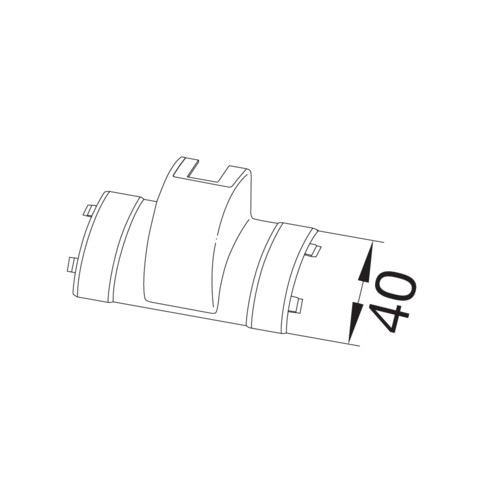

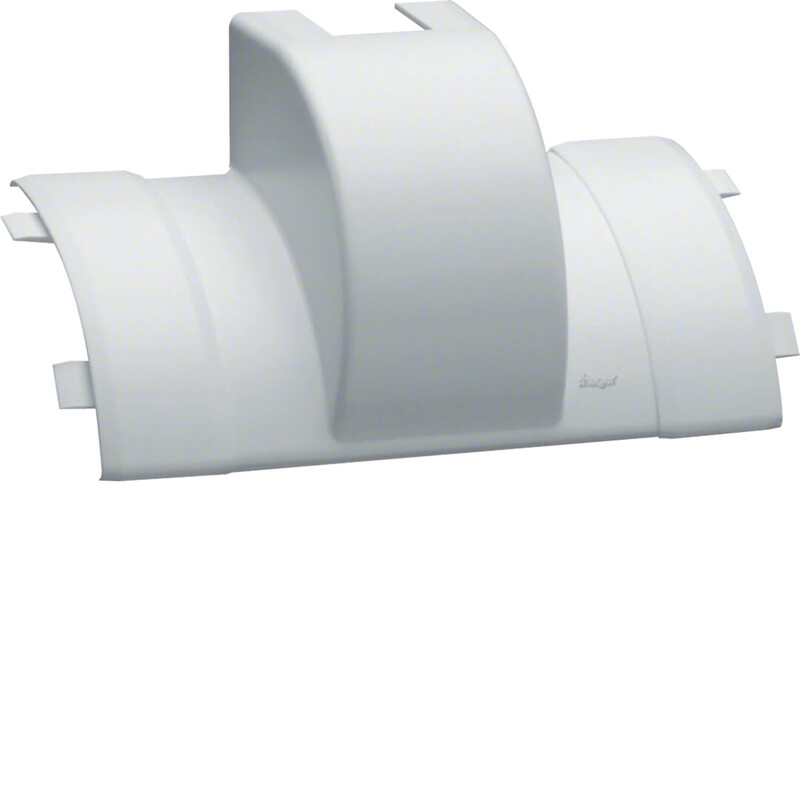

DERIVATION PIECE TEHALIT.SL EK40040 HF EK40X40/LF15X15 WHT
Product code
1476106
T-piece for EK4004009016 corner duct to split from LF15x15 duct, color traffic white
Channel height: 40 mm
Channel width: 40 mm
Material: ABS
Halogen-free: yes
Color: traffic white
RAL color code: 9016 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Transition piece for corner duct/trunking (EC001948)
Height corner duct40 mm
Width corner duct40 mm
Height duct connection40 mm
Width duct connection40 mm
Joint coveryes
MaterialPlastic
Material qualityOther
Halogen freeyes
ColourWhite
RAL-number9016
Degree of protection (IP)IP40
Impact strengthIK07
Product codes
SAPCLX114
STK1476106
PLC1476106
GTIN/EAN4012740017442
Manufacturer part numberEK40040819016
Vendor material number1476106
Basic information
Package measurements (L x W x H)75 x 25 x 135 mm
Package volume0.253 l
Package weight0.019 kg
Base uniteach
Package units1 / 15 / 2160
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
