DEVICE CARRIER TEHALIT BKG BKGGT60
Product code
1476759

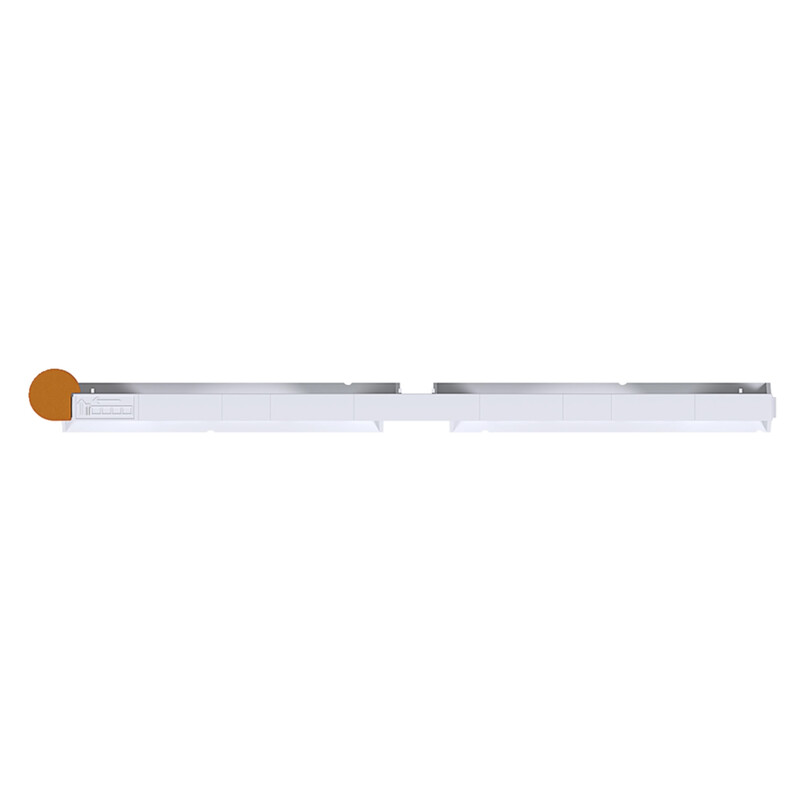

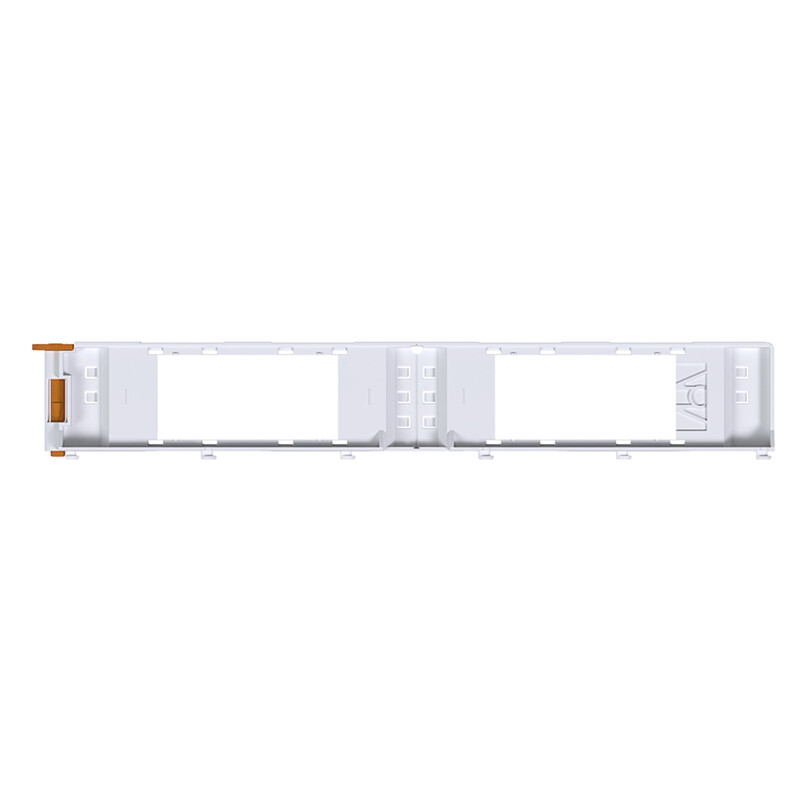

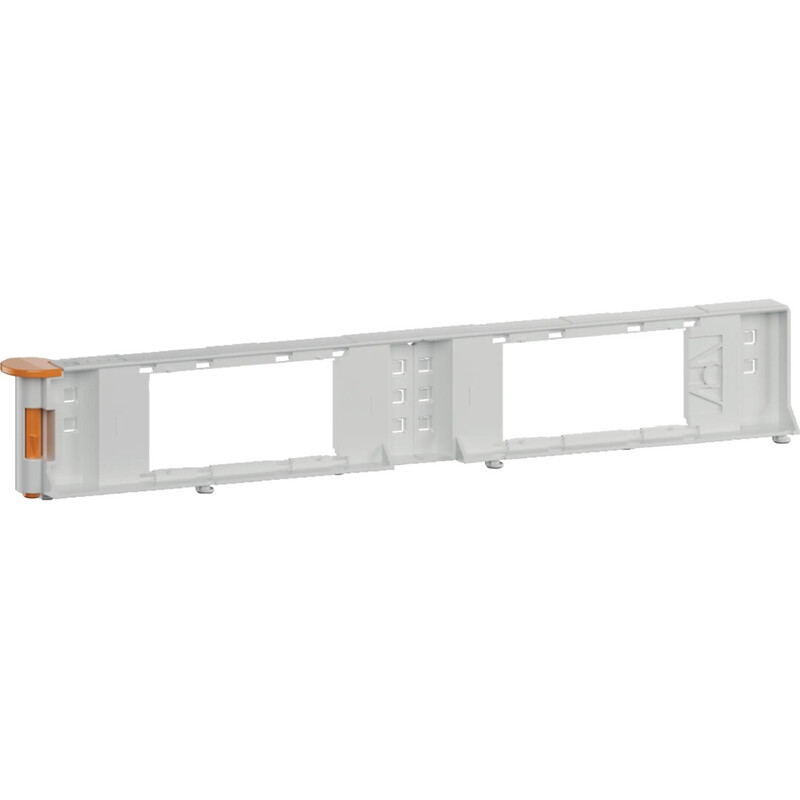

Furniture support 45x45 for floor channels BKB/BKG, height 60 mm

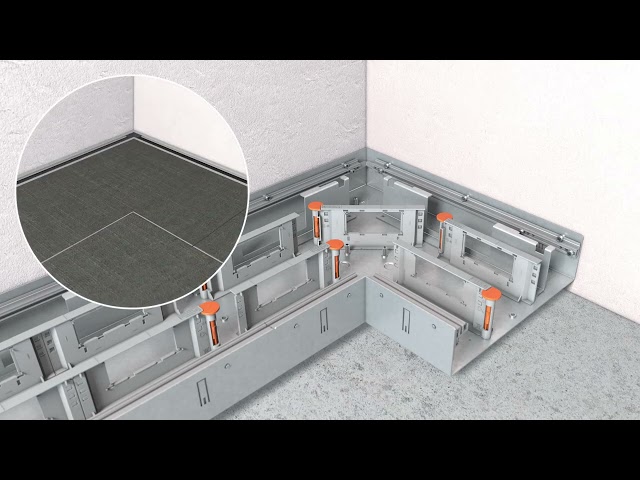

The furniture support 45x45 for channel furniture is designed to be installed in 60 mm high BKB/BKG-type floor channels. It is suitable for installation in dry indoor areas with dry-cleanable flooring. Up to four 45x45 mm devices can be mounted on the support. The delivery includes safety clips for securing the support to the channel base. Channel furniture must be purchased separately. This product complies with DIN EN 50085-2-2. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Device cup/device carrier for subfloor system (EC000119)
Number of appliances to build in4
Number of conduit inlets4
Length342 mm
Width60 mm
Depth21 mm
ModelSupport shape
Installation techniqueGrid size 45
Mounting method installation unitSnap
Number of strain relieves4
MaterialPolyamide (PA)
Product codes
SAPDMN573
STK1476759
PLC1476759
GTIN/EAN4012740983914
Manufacturer part numberBKGGT60
Vendor material number1476759
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.032 l
Package weight0.106 kg
Base uniteach
Package units20 / 960
Package contents–
UNSPSC39131712
BrandHAGER
VendorUTU OY
