DIMMER R.CLASSIC 3-100W RLC+LED EXT. UR BLACK

Product code
2613677

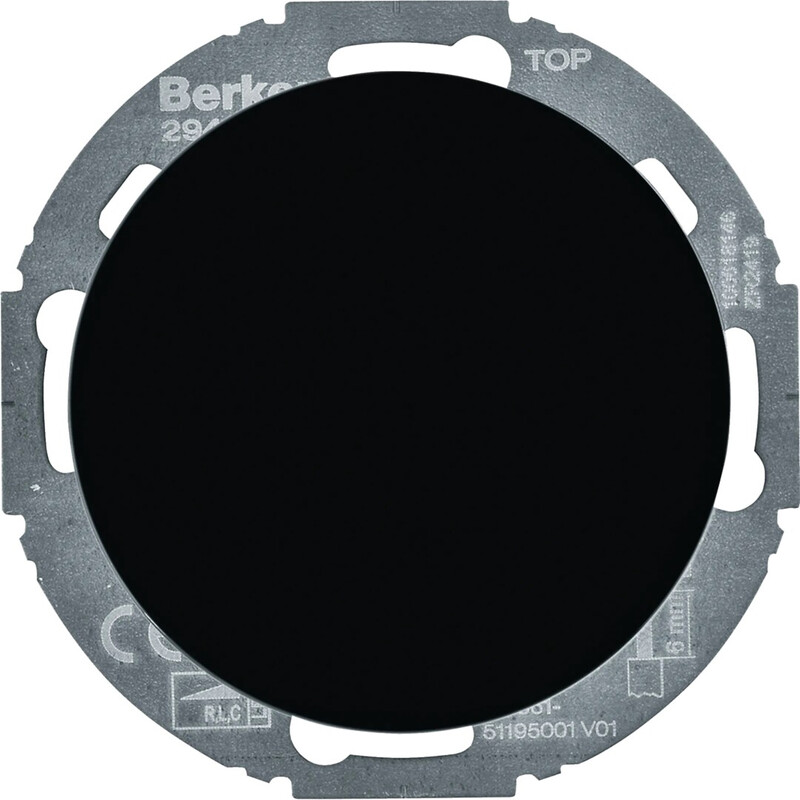

Universal dimmer with push-button operation for Series R.classic, dimming incandescent and halogen lamps with a power range of 20 - 420 W, dimmable PJ halogen lamps with a transformer with a power range of 3 - 100 W, or dimmable LED lamps with a transformer with a power range of 20 - 100 W. Two-wire connection as replacement for the switch or three-wire connection with N-wire connected to improve dimming performance. Addition of dimming points via extension module 29452045. Option to select dimming method and adjust minimum/maximum values in the dimmer housing. Color: black glossy. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Dimmer (EC000025)
Assembly arrangementBasic element with central cover plate
Method of operationTurn/push button
App control via Bluetoothno
Dimming phase cut-on (leading edge)yes
Dimming phase cut-off (trailing edge)yes
Serial dimmerno
Type of loadUniversal and LED Retrofit
Substation inputyes
Light value memoryyes
Applicable with buttonno
Applicable with movement sensorno
Applicable with presence indicatorno
Applicable with time switch/timerno
Applicable with transmission buttonno
Applicable with infrared buttonno

Product codes

SAPCJF199
STK2613677
PLC2613677
GTIN/EAN4011334510178
Manufacturer part number29442045
Vendor material number2613677

Basic information

Package measurements (L x W x H)71 x 71 x 71 mm
Package volume0.297 l
Package weight0.129 kg
Base uniteach
Package units1 / 100
Package contents
UNSPSC39122206
BrandHAGER
VendorUTU OY

Documents (5)

Environment and safety

Carbon footprint data

Carbon footprint of product manufacturing (A1–A3 GWP value)0.0131
GWP, uniteach
Source for GWP dataEPD

Documents (1)

Sustainability brochures & documents

Manufacturer

NameUTU Oy
Postal addressAhjontie 1, 28400 Ulvila
