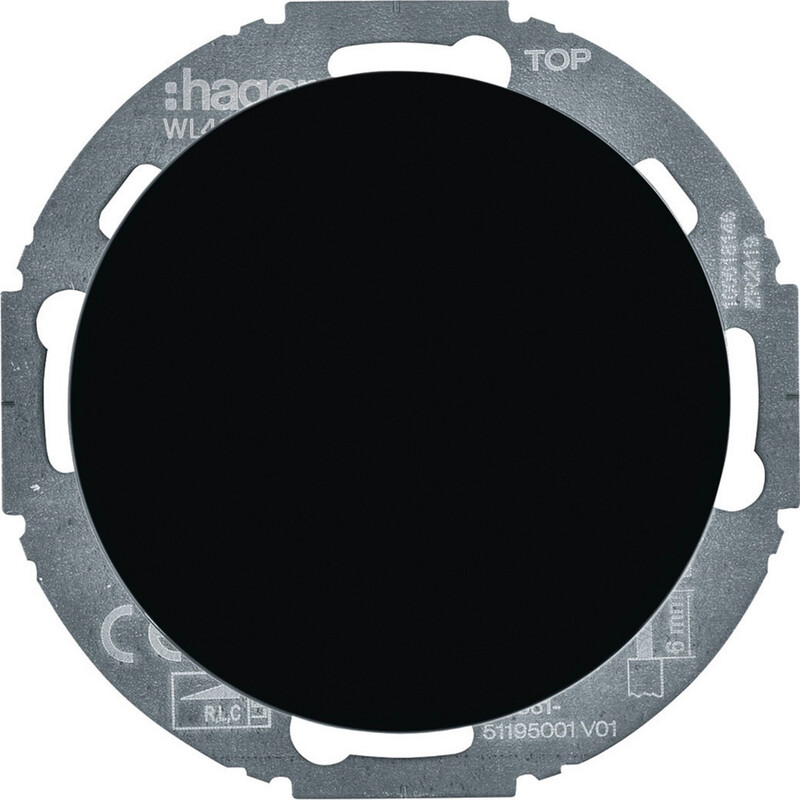

DIMMER R.CLASSIC 3-100W RLC+LED EXT. UR BLACK
Product code
2613697

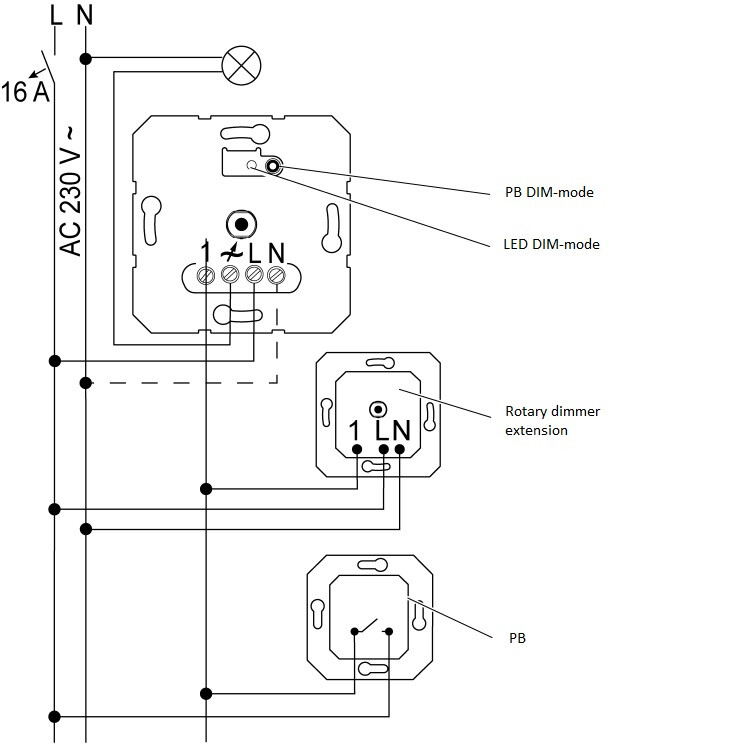

General rotary dimmer with push-button function, Serie R.classic, for dimming 230V incandescent and halogen lamps and PJ halogen lamps with dimmable transformer in the power range 20–420 W, or for dimming dimmable LED lamps in the power range 3–100 W, or for dimming LED lamps with dimmable transformer in the power range 20–100 W. Two-wire connection in place of a switch or three-wire connection with neutral wire connected to improve dimming performance. Addition of dimming points using expansion module 29452045. In the dimmer housing, possibility to select the dimming method and adjust minimum/maximum values. Color: glossy black. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Dimmer (EC000025)
Assembly arrangementBasic element with central cover plate
Method of operationTurn/push button
App control via Bluetoothno
Dimming phase cut-on (leading edge)yes
Dimming phase cut-off (trailing edge)yes
Serial dimmerno
Type of loadUniversal and LED Retrofit
Substation inputyes
Light value memoryyes
Applicable with buttonno
Applicable with movement sensorno
Applicable with presence indicatorno
Applicable with time switch/timerno
Applicable with transmission buttonno
Applicable with infrared buttonno
Product codes
SAPDQC581
STK2613697
PLC2613697
GTIN/EAN3250610089767
Manufacturer part numberWL4011BG
Vendor material number2613697
Basic information
Package measurements (L x W x H)71 x 71 x 43 mm
Package volume0.217 l
Package weight0.105 kg
Base uniteach
Package units1 / 36 / 1152
Package contents–
UNSPSC39122206
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0107
GWP, uniteach
Source for GWP dataEPD
