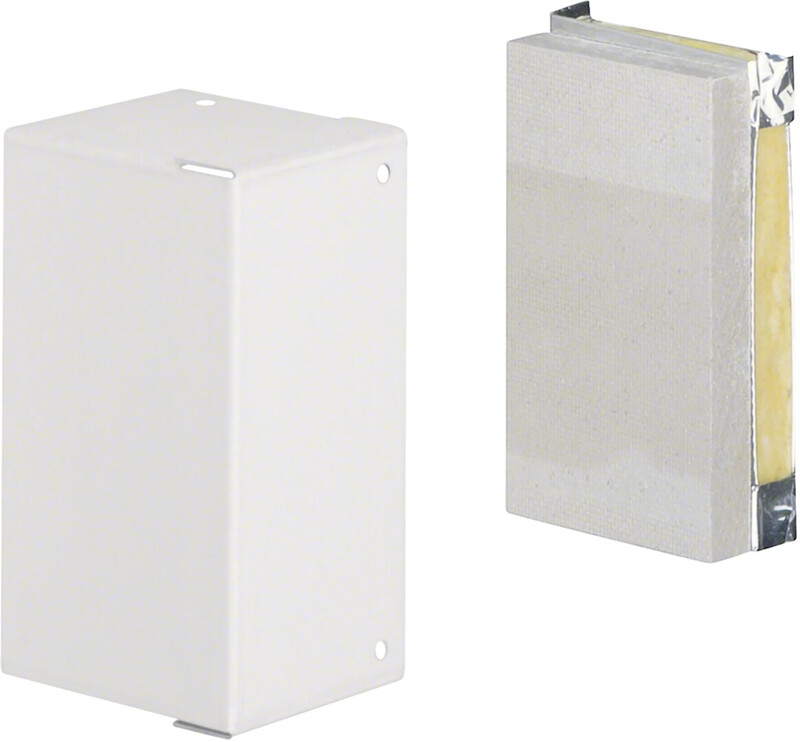

END PIECE TEHALIT R3033 FWK3E 50X110 T.WHITE
Product code
1476172
End cap for fire protection duct FWK3E5011009016, to terminate the branch of the fire protection duct installation. The fitting is equipped with female couplings for duct connection. Surface material is steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)End piece for fire-resistant duct (EC002659)
ModelLeft/right
Outer height88 mm
Outer width150 mm
Inner height50 mm
Inner width109 mm
Usable cross section5450 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Product codes
SAPCPS440
STK1476172
PLC1476172
GTIN/EAN4012740020107
Manufacturer part numberR30339016
Vendor material number1476172
Basic information
Package measurements (L x W x H)20 x 90 x 150 mm
Package volume0.27 l
Package weight0.718 kg
Base uniteach
Package units1 / 300
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
