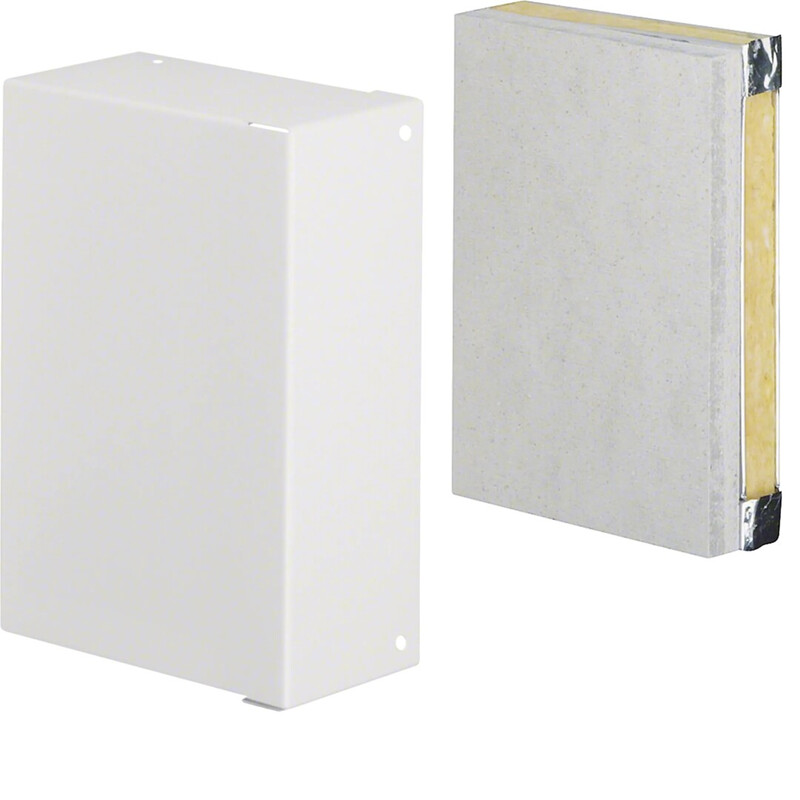

END PIECE TEHALIT R3053 FWK3E 102X160 T.WHITE
Product code
1476184
End cap for fire protection duct FWK3E9916009016 to terminate the branch of the fire protection duct installation. The fitting is equipped with female couplings for duct connection. Surface material is steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)End piece for fire-resistant duct (EC002659)
ModelLeft/right
Outer height142 mm
Outer width200 mm
Inner height102 mm
Inner width159 mm
Usable cross section16218 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Product codes
SAPCPS451
STK1476184
PLC1476184
GTIN/EAN4012740020220
Manufacturer part numberR30539016
Vendor material number1476184
Basic information
Package measurements (L x W x H)20 x 200 x 142 mm
Package volume0.568 l
Package weight1.27 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
