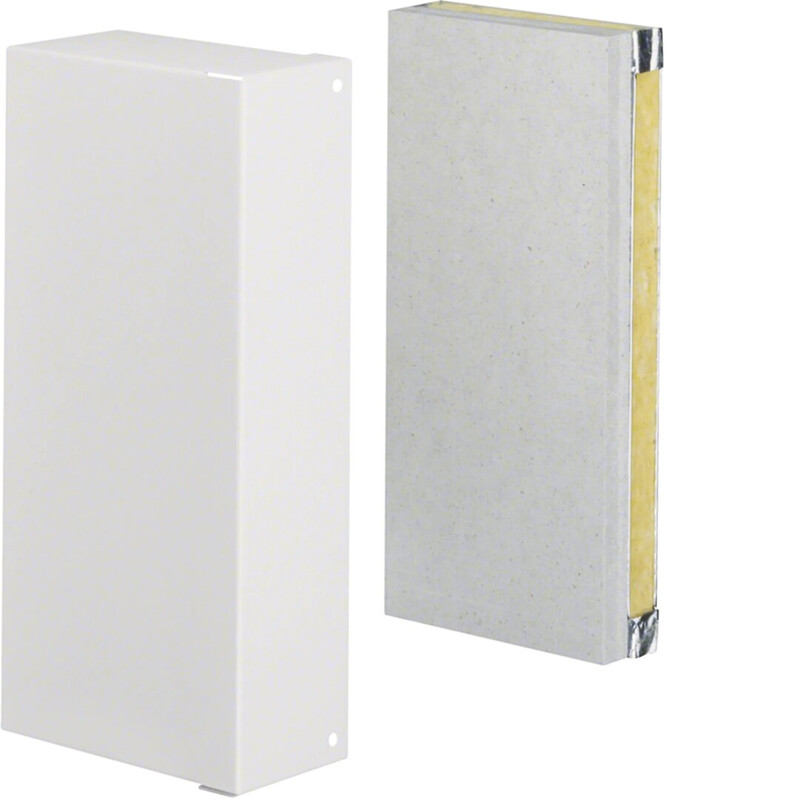

END PIECE TEHALIT R3063 FWK3E 102X260 T.WHITE
Product code
1476190
End cap for fire protection duct FWK3E9926009016 to terminate the branch of the fire protection duct installation. The fitting is equipped with female couplings for duct connection. Surface material is steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)End piece for fire-resistant duct (EC002659)
ModelLeft/right
Outer height142 mm
Outer width300 mm
Inner height102 mm
Inner width259 mm
Usable cross section26418 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Product codes
SAPCPS457
STK1476190
PLC1476190
GTIN/EAN4012740020282
Manufacturer part numberR30639016
Vendor material number1476190
Basic information
Package measurements (L x W x H)20 x 300 x 142 mm
Package volume0.852 l
Package weight1.77 kg
Base uniteach
Package units1 / 48
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
