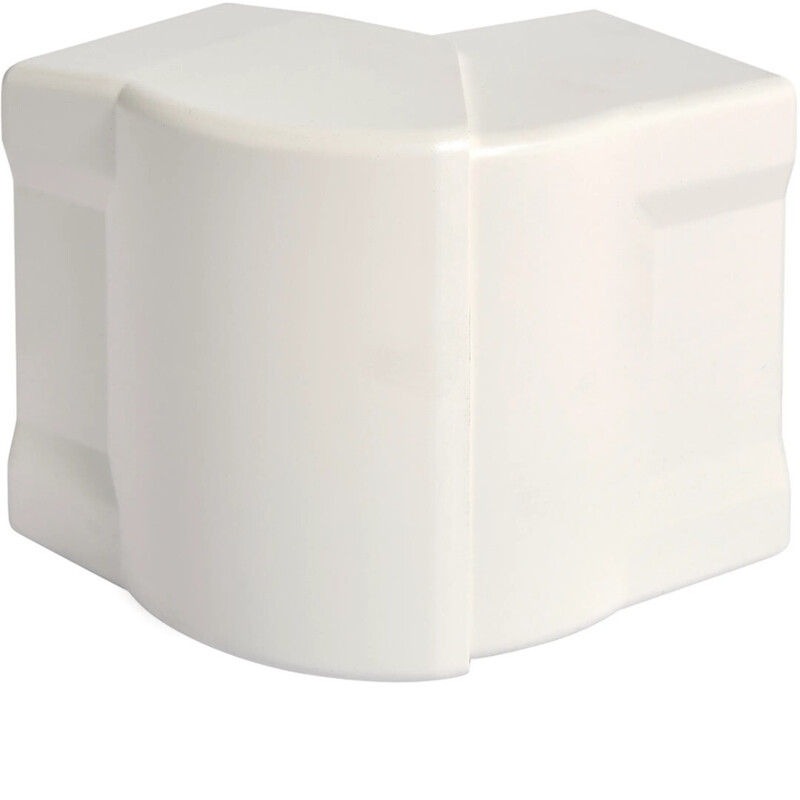

EXTERNAL CORNER TEHALIT GBD GBD500853 HF GBD(A) 56X85 WHT
Product code
1476206
The corner fitting made from halogen-free ABS plastic facilitates the installation of cable duct runs at corners. The corner piece is adjustable between 83 - 140°. Thanks to its material, the product is suitable for use with both plastic and aluminum cable ducts. The profiled cover on the edges of the duct body conceals any unevenness at the duct cut and ensures a neat installation. Compliance with EN 50085-1 and EN 50085-2-1. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Outer corner for wall duct (EC000872)
Width56 mm
Depth85 mm
Number of covers1
Cover width 145 mm
Symmetricyes
ModelMoulded hood
Angle83-140 °
MaterialPlastic
Material qualityOther
Halogen freeyes
Anti-bacterial treatmentno
Surface protectionUntreated
ColourWhite
RAL-number9016
With protective foilno
Product codes
SAPCQC051
STK1476206
PLC1476206
GTIN/EAN4012740014991
Manufacturer part numberGBD5008539016
Vendor material number1476206
Basic information
Package measurements (L x W x H)110 x 95 x 110 mm
Package volume1.15 l
Package weight0.084 kg
Base uniteach
Package units1 / 5 / 360
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
