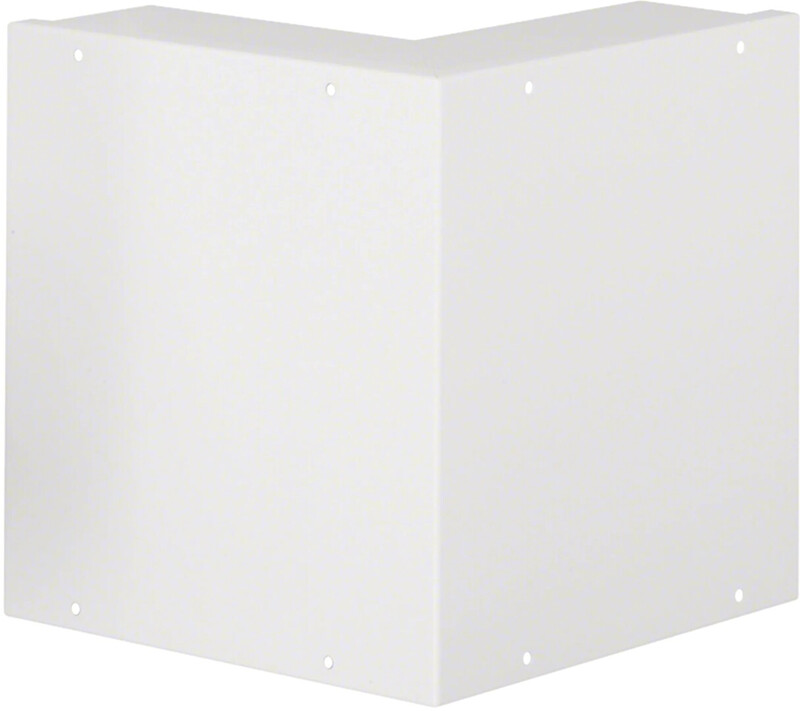

EXTERNAL CORNER TEHALIT R3042 FWK3E 50X210 T.WHITE
Product code
1476177
External corner for fire protection duct FWK3E5021009016 for direction changes in fire protection duct installations. The profile is equipped with female connectors for duct connections. Surface material is steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Outer corner for fire-resistant duct (EC002658)
Angle116 °
Outer height88 mm
Outer width250 mm
Inner height50 mm
Inner width209 mm
Usable cross section10450 mm²
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS444
STK1476177
PLC1476177
GTIN/EAN4012740020152
Manufacturer part numberR30429016
Vendor material number1476177
Basic information
Package measurements (L x W x H)240 x 240 x 250 mm
Package volume14.4 l
Package weight6.92 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
