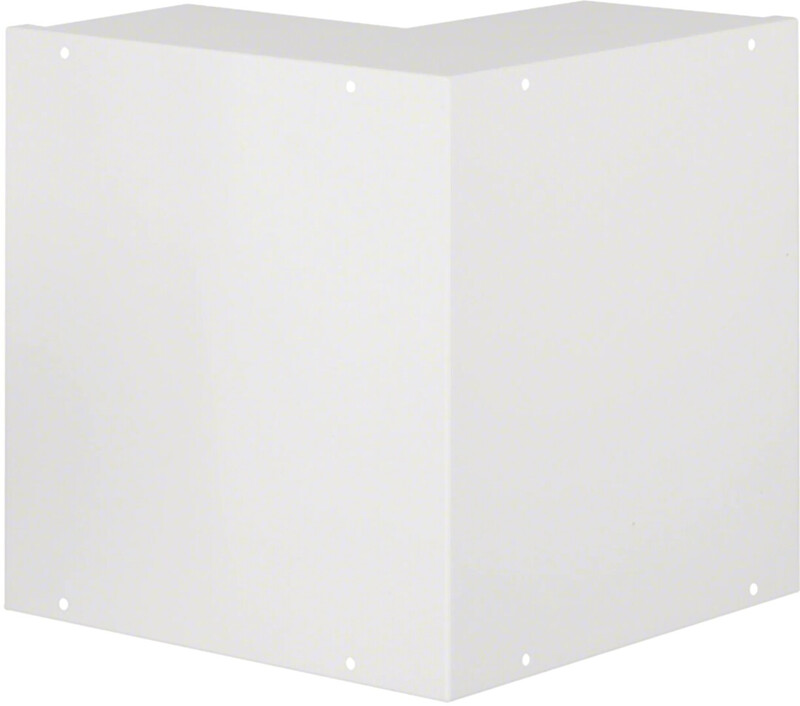

EXTERNAL CORNER TEHALIT R3062 FWK3E 102X260 T.WHITE
Product code
1476189
External corner for fire protection duct FWK3E9926009016 for direction changes in fire protection duct installations. The profile is equipped with female connectors for duct connections. Surface material is steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Outer corner for fire-resistant duct (EC002658)
Angle98 °
Outer height142 mm
Outer width300 mm
Inner height102 mm
Inner width259 mm
Usable cross section26418 mm²
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS456
STK1476189
PLC1476189
GTIN/EAN4012740020275
Manufacturer part numberR30629016
Vendor material number1476189
Basic information
Package measurements (L x W x H)295 x 295 x 300 mm
Package volume26.108 l
Package weight10.75 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
