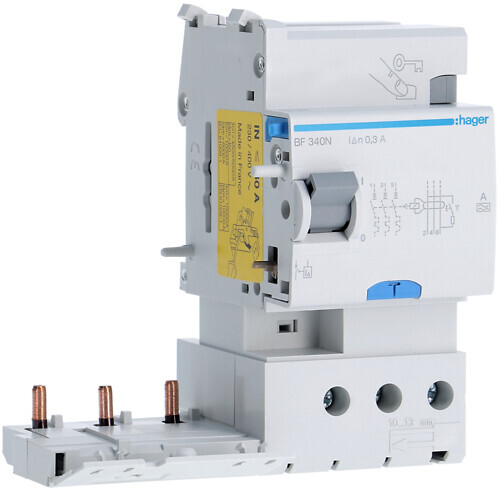

FAULT CURRENT CIRCUIT BREAKER BF340N 300MA A/3X40A
Product code
3260776
Add-on block 3P 40A 300mA A
3-pole residual current device, rated current 40A, trip sensitivity 300mA. Use with 3-pole circuit breakers with 1-pole per module circuit breakers. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) module (EC002297)
Nominal voltage230-400 V
Nominal current40 A
Rated fault current adjustableno
Rated fault current0.3-0.3 A
Delay adjustableno
Number of poles3
Leakage current typeA
Frequency50 Hz
Ambient temperature during operating-25-70 °C
Product codes
SAPALN700
STK3260776
PLC3260776
GTIN/EAN3250611363521
Manufacturer part numberBF340N
Vendor material number3260776
Basic information
Package measurements (L x W x H)100 x 100 x 80 mm
Package volume0.8 l
Package weight0.23 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.
GWP, uniteach
Source for GWP dataEPD
