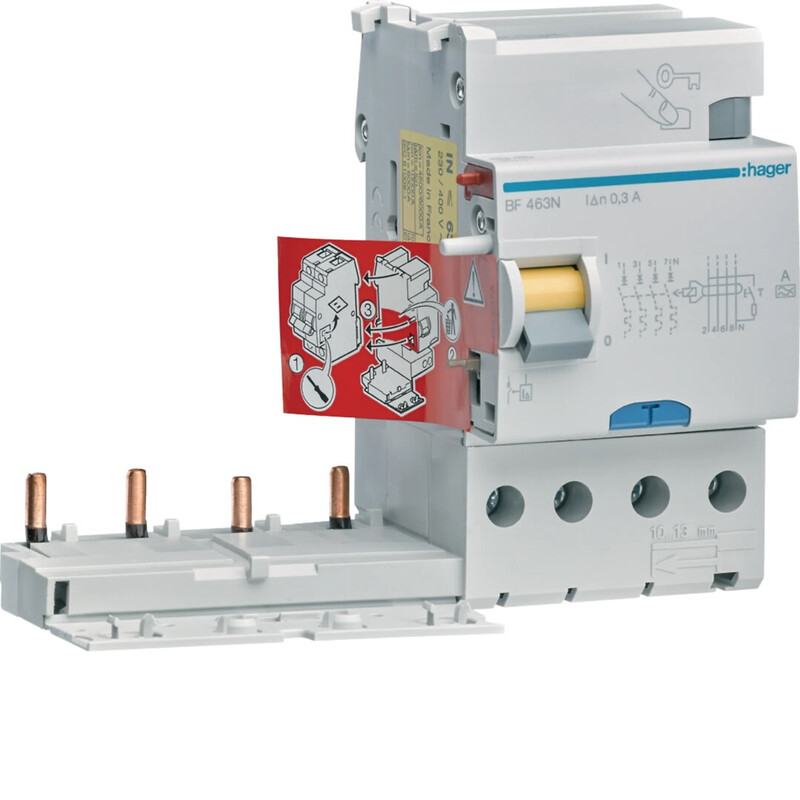

FAULT CURRENT CIRCUIT BREAKER BF463N 300MA A/4X63A
Product code
3260782
Add-on block 4P 63A 300mA A
4-pole residual current device, rated current 63A, trip sensitivity 300mA. Suitable for use with 4-pole circuit breakers with 1-pole per module circuit breakers. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Residual current circuit breaker (RCCB) module (EC002297)
Nominal voltage230-400 V
Nominal current63 A
Rated fault current adjustableno
Rated fault current0.3-0.3 A
Delay adjustableno
Number of poles4
Leakage current typeA
Frequency50 Hz
Ambient temperature during operating-25-70 °C
Product codes
SAPALN704
STK3260782
PLC3260782
GTIN/EAN3250611364542
Manufacturer part numberBF463N
Vendor material number3260782
Basic information
Package measurements (L x W x H)100 x 100 x 80 mm
Package volume0.8 l
Package weight0.27 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121614
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.3716
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
