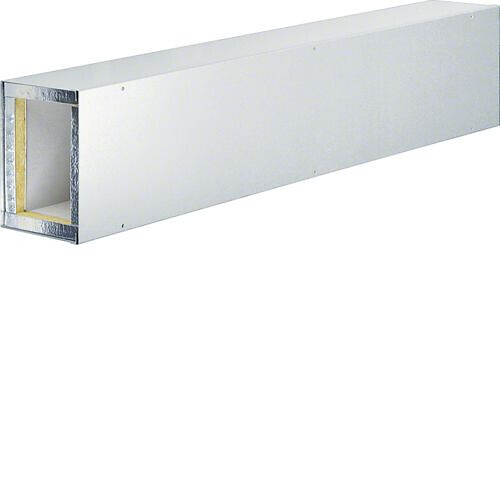

FIRE PROOF TRUNK TEHALIT FWK3E E30 FE 102X159X1000 WHT

Product code
1476162
Fire protection channel E30 according to DIN4102-12 for protecting cables serving non-critical areas such as stairwells, escape routes, and other critical spaces. The channel prevents the spread of fire from outside to inside the channel or from inside to outside for at least 30 minutes. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Fire-resistant duct (EC002657)
Outer height142 mm
Outer width200 mm
Inner height102 mm
Inner width159 mm
Length1000 mm
Usable cross section16218 mm²
Insulating materialOther
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight

Product codes

SAPCPS430
STK1476162
PLC1476162
GTIN/EAN4012740019552
Manufacturer part numberFWK3E9916009016
Vendor material number1476162

Basic information

Package measurements (L x W x H)1000 x 200 x 143 mm
Package volume28.6 l
Package weight20.1 kg
Base uniteach
Package units1 / 15
Package contents
UNSPSC39131706
BrandHAGER
VendorUTU OY
