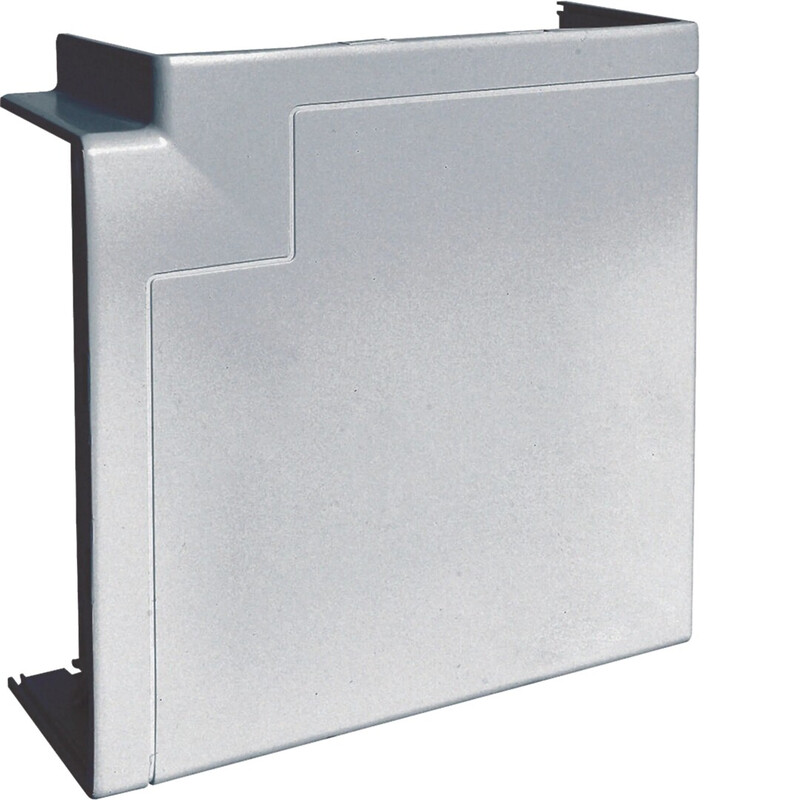

FLAT CORNER TEHALIT GBA GBD501315 HF GBD(A) 56X134 ALU
Product code
1476567
The flat angle made from halogen-free ABS plastic facilitates the installation of cable duct routes in 90-degree directional changes performed parallel to the surface. Thanks to its material, the product is suitable for use with both plastic and aluminum cable ducts. The profiled component covering the edges of the duct body conceals irregularities at the duct cut and ensures a neat installation. Compliance with EN 50085-1 and EN 50085-2-1. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Flat bend for wall duct (EC000876)
Width134 mm
Depth56 mm
Number of covers2
Cover width 145 mm
Cover width 245 mm
DirectionRising/descending
Symmetricno
ModelMoulded hood
Angle90-90 °
MaterialPlastic
Material qualityOther
Halogen freeyes
Anti-bacterial treatmentno
Surface protectionWet varnished
ColourAluminium
Product codes
SAPCUE341
STK1476567
PLC1476567
GTIN/EAN4012740023528
Manufacturer part numberGBD501315ALU
Vendor material number1476567
Basic information
Package measurements (L x W x H)160 x 160 x 80 mm
Package volume2.048 l
Package weight0.22 kg
Base uniteach
Package units1 / 4 / 288
Package contents–
UNSPSC39131713
BrandHAGER
VendorUTU OY
