FLOOR BOX ELECTRAPLAN.VE-EE EKQ060 RST 200X200 BL 15MM

Product code
1476629

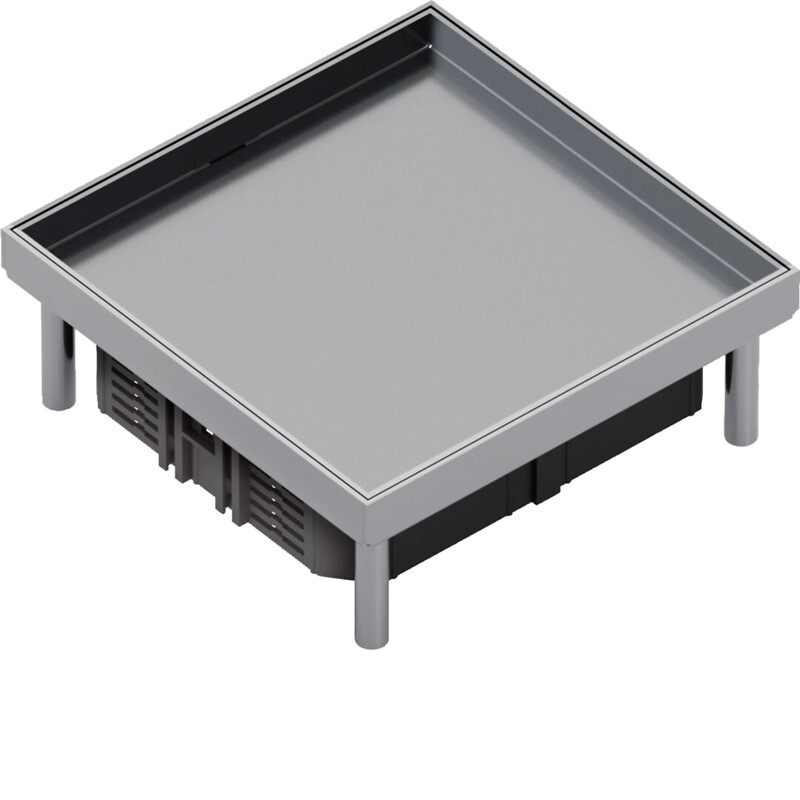

Height-adjustable cassette-type floor box with a solid lid and a 15 mm floor finish recess. Manufactured from stainless steel. This square-shaped box consists of a cassette frame, a solid cassette lid, and a seal. The product can be used in all types of floor structures in dry indoor environments with dry or wet-cleanable floors. The seal can be replaced to ensure the sealing class throughout the entire service life. The floor box can be equipped with mounting boxes whose installation height can be selected in steps. The box can be fitted with up to six devices sized at 45 x 45 mm. Tested in accordance with standards DIN EN 50085-1 and DIN EN 50085-2-2. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Levelling cassette for duct mounting, raised and subfloor installation (EC002603)
Nominal dimension199 mm
Cassette height95 mm
Min. built-in depth95 mm
Levelling height95-282 mm
Depth of flooring recess15 mm
Floor maintenanceWet
MaterialStainless steel
Number of conduit outlets0
Colour conduit outletGrey
Chassis part for device cupsyes
Length built-in dimension200 mm
Width built-in dimension200 mm
Number of appliances to build in6
Number of device cups2

Product codes

SAPDCD146
STK1476629
PLC1476629
GTIN/EAN4012740028820
Manufacturer part numberEKQ060BL15
Vendor material number1476629

Basic information

Package measurements (L x W x H)285 x 255 x 115 mm
Package volume8.358 l
Package weight1.535 kg
Base uniteach
Package units1 / 36
Package contents
UNSPSC39121307
BrandHAGER
VendorUTU OY
