FLOOR BOX ELECTRAPLAN.VE-EE EKQ120 RST D305 TM 25MM

Product code
1476662

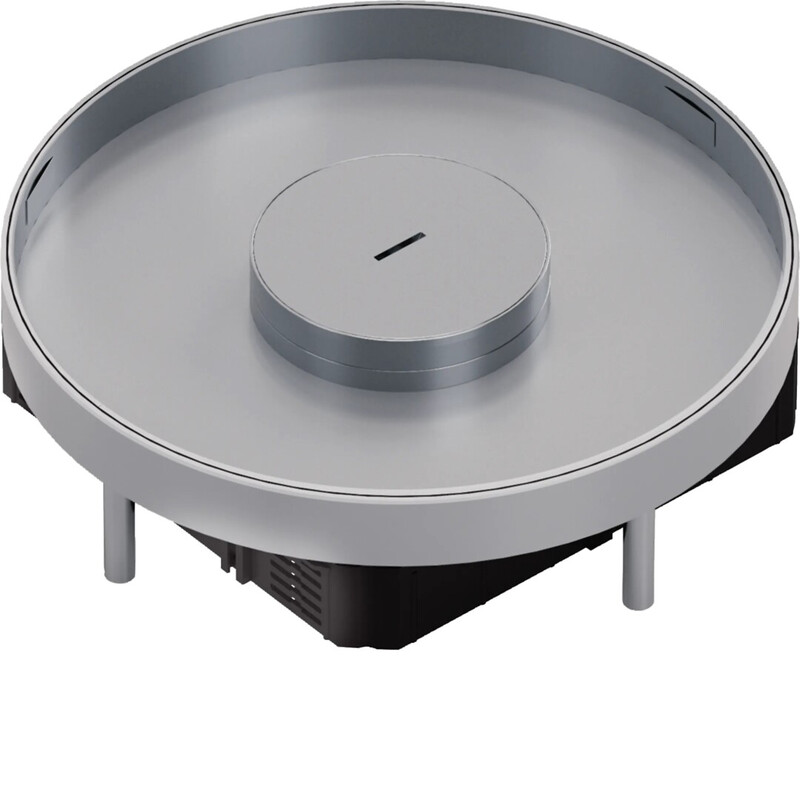

Height-adjustable cassette-type floor box with cable conduit center and 25 mm floor finish recess. Manufacturing material: stainless steel. This round-shaped box consists of a cassette frame, a cable conduit cassette, and a seal. The product can be used in all types of floor structures in dry indoor areas with dry or wet-cleanable floors. The seal can be replaced to ensure the sealing class throughout the entire service life. The cable conduit provides protection against water on the floor surface up to a level of 10 mm in operating position. This rotatable conduit remains stored in connection with the floor box lid when not in use. The floor box can be equipped with instrument recesses whose installation height can be selected in steps. The box can be fitted with up to twelve instruments sized 45 x 45 mm. Tested in accordance with standards DIN EN 50085-1 and DIN EN 50085-2-2. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Levelling cassette for duct mounting, raised and subfloor installation (EC002603)

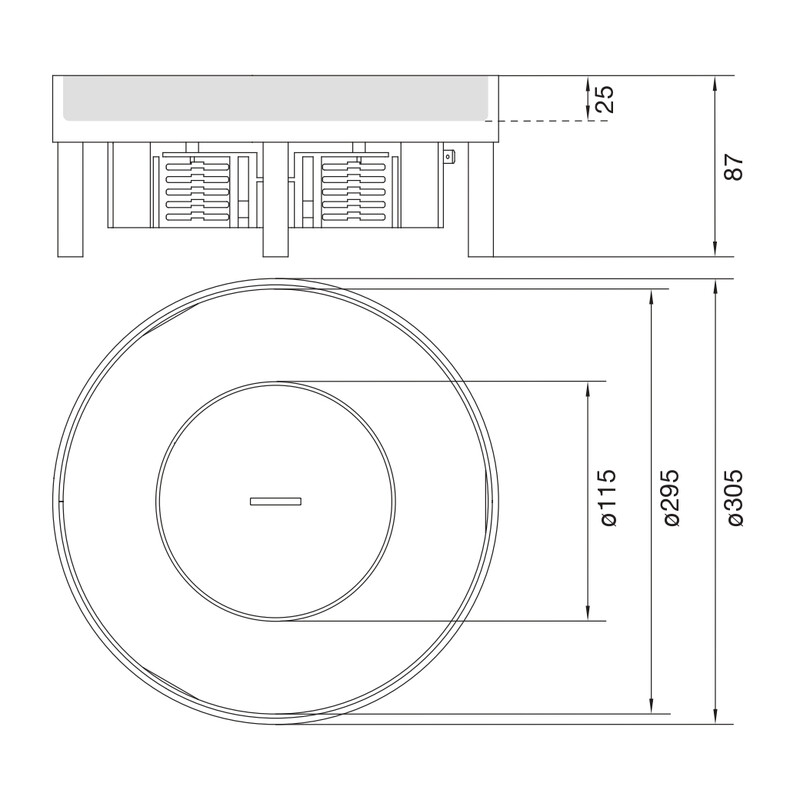

Nominal dimension305 mm
Cassette height87 mm
Min. built-in depth105 mm
Levelling height105-292 mm
Depth of flooring recess25 mm
Floor maintenanceWet
ModelRound
MaterialStainless steel
Number of conduit outlets0
Type of conduit outletTube cable outlet for floor duct
Material conduit outletStainless steel
Colour conduit outletStainless steel
Chassis part for device cupsyes
Length built-in dimension87 mm
Width built-in dimension305 mm

Product codes

SAPDCD179
STK1476662
PLC1476662
GTIN/EAN4012740029230
Manufacturer part numberEKR120TM25
Vendor material number1476662

Basic information

Package measurements (L x W x H)320 x 280 x 90 mm
Package volume8.064 l
Package weight3.21 kg
Base uniteach
Package units1 / 64
Package contents
UNSPSC39121307
BrandHAGER
VendorUTU OY
