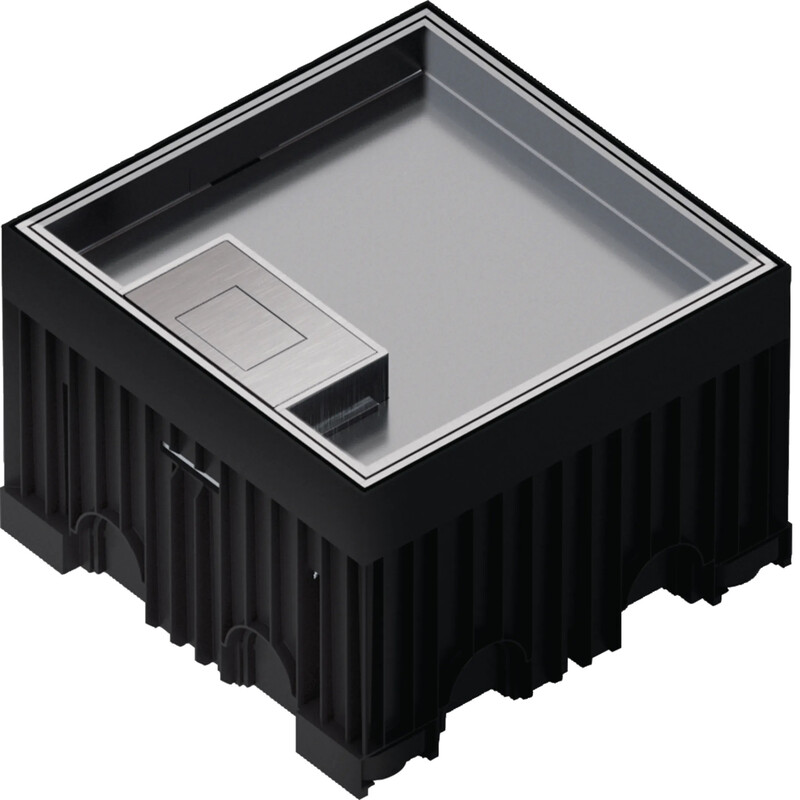

FLOOR BOX ELECTRAPLAN.VE-EE UDKQ02 RST 135X135X100
Product code
1476625

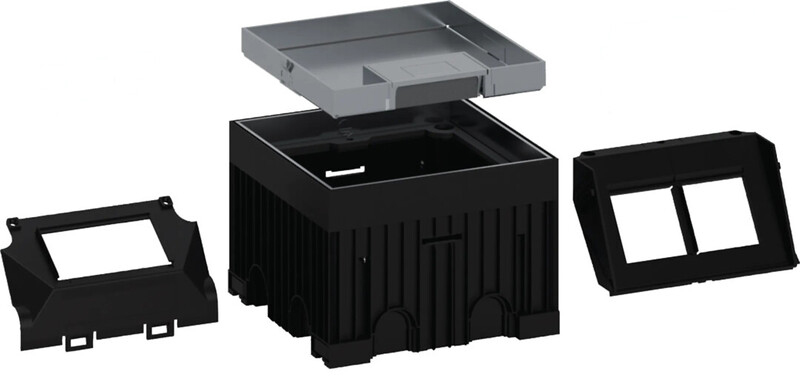

LARA Q02 floor box package, square-shaped, with adjustable height lid, includes a plastic casting box, installation protection plate, installation cover, cassette-type floor box cover with cable opening and cassette base, impact sound dampeners, installation frame for two 45 x 45 mm devices, installation frame for one connection plate for AV and telecom connectors. Can be used flexibly indoors in various types of dry-cleanable floors. Penetrations in side walls and base for empty pipes (8 x M20/M25). Can be equipped separately with the Q02 height adjustment set. Tested in accordance with standards DIN EN 50085-1 and DIN EN 50085-2-2. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Device installation insert for subfloor installation (EC000024)
Cover modelOther
Number of inlets8
Number of device cups2
Number of socket outlets with protective contact CEE 7/3 (type F)2
Number of socket outlets with protective contact CEE 7/5 (type E)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of socket outlets British Standard BS 13630
With cable outlet in coveryes
Lockable coveryes
Housing materialPlastic
Surface protection housingUntreated
Material coverStainless steel
Surface protection coverOther
Surface treatment coverBrushed
Product codes
SAPDFJ405
STK1476625
PLC1476625
GTIN/EAN4012740031059
Manufacturer part numberUDKQ02E15U
Vendor material number1476625
Basic information
Package measurements (L x W x H)147 x 144 x 92 mm
Package volume1.947 l
Package weight1.577 kg
Base uniteach
Package units1 / 192
Package contents–
UNSPSC39121307
BrandHAGER
VendorUTU OY
Documents (8)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)20.6393
GWP, uniteach
Source for GWP dataEPD
