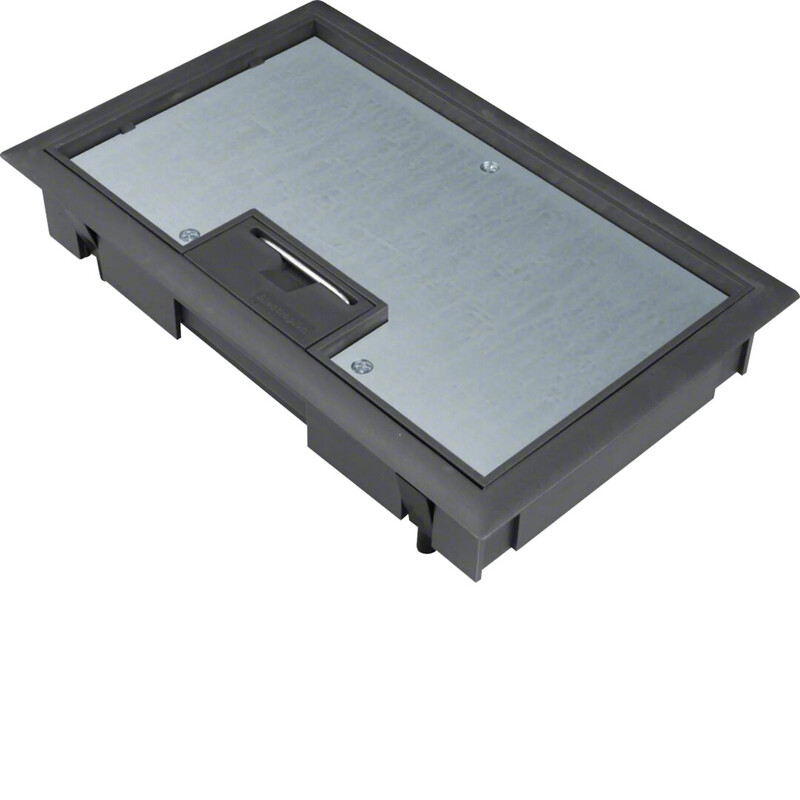

FLOOR BOX KDE0408 247x147mm 5mm MUS
Product code
1461280
hinged cover E04 f 8mm flooring db
Floor box cover E04 147x247 mm 8 mm for floor finishes made of polyamide in deep black, compliant with DIN EN 50085-1 and DIN EN 50058-2-2 for ultra-thin floor installation, includes mounting package for fasteners 5 - 15 mm in addition to floor finish, compatible with cast-in boxes and floor channels installed on top of or flush with the floor, with cover frame on top of the installation surface. Insertion length: 147 mm Insertion width: 247 mm Material: Polyamide (PA) Halogen-free: yes Number of device mounting positions: 2 Color: black RAL color code: 9005 Overall length: 161 mm Minimum insertion depth: 53 mm Floor cleaning: dry Approvals/standards: EN50085-2-2 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Device installation insert for subfloor installation (EC000024)
Cover modelRectangular
Number of inlets1
Number of device cups2
Number of socket outlets with protective contact CEE 7/3 (type F)0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)0
Number of socket outlets British Standard BS 13630
With cable outlet in coveryes
Lockable coveryes
Housing materialPlastic
Surface protection housingUntreated
Material coverPlastic
Surface protection coverUntreated
Surface treatment coverUntreated
With opening carpetingyes
Product codes
SAPCBF418
STK1461280
PLC1461280
GTIN/EAN4012002247242
Manufacturer part numberKDE04089005
Vendor material number1461280
Basic information
Package measurements (L x W x H)247 x 147 x 5 mm
Package volume0.182 l
Package weight1.27 kg
Base uniteach
Package units1 / 9 / 45 / 450
Package contents–
UNSPSC39131605
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1744
GWP, uniteach
Source for GWP dataEPD
