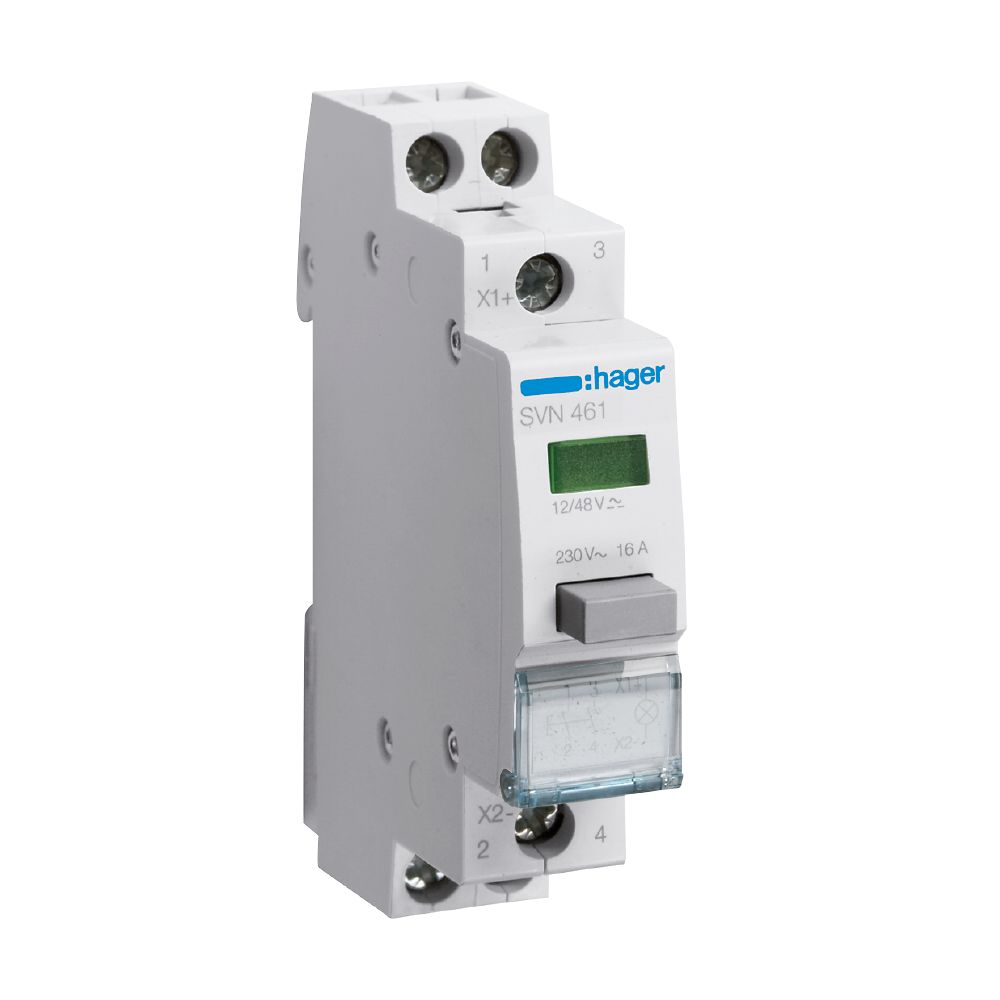

IMPULSE PUSH BUTTON SVN461 2NO + GREEN SL 12-48V
Product code
2317396
Impulse 2NO PB + green light 12/48V
Push-button control with two normally closed contacts and a green LED indicator, designed for mounting on a DIN rail. The control is equipped with a label window for group and device identification. Rated voltage 12-24 V AC/DC. Construction in accordance with IEC 62094-1, IEC 60947-1, contact protection in accordance with DIN VDE 0106 part 100. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Push button for distribution board (EC001546)
Number of contacts as normally closed contact0
Number of contacts as normally open contact2
Number of contacts as change-over contact0
Switching current16 A
Switching voltage230 V
Voltage typeAC
With signal lampyes
Colour calotteGreen
Lamp typeLED
Lamp socketOther
Max. lamp power800 W
Lamp voltage48-48 V
Colour buttonGrey
Width in number of modular spacings1
Built-in depth66 mm
Product codes
SAPAEY926
STK2317396
PLC2317396
GTIN/EAN3250615725530
Manufacturer part numberSVN461
Vendor material number2317396
Basic information
Package measurements (L x W x H)20 x 80 x 100 mm
Package volume0.16 l
Package weight0.005 kg
Base uniteach
Package units1 / 12 / 144 / 3456
Package contents–
UNSPSC39121552
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0007
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
