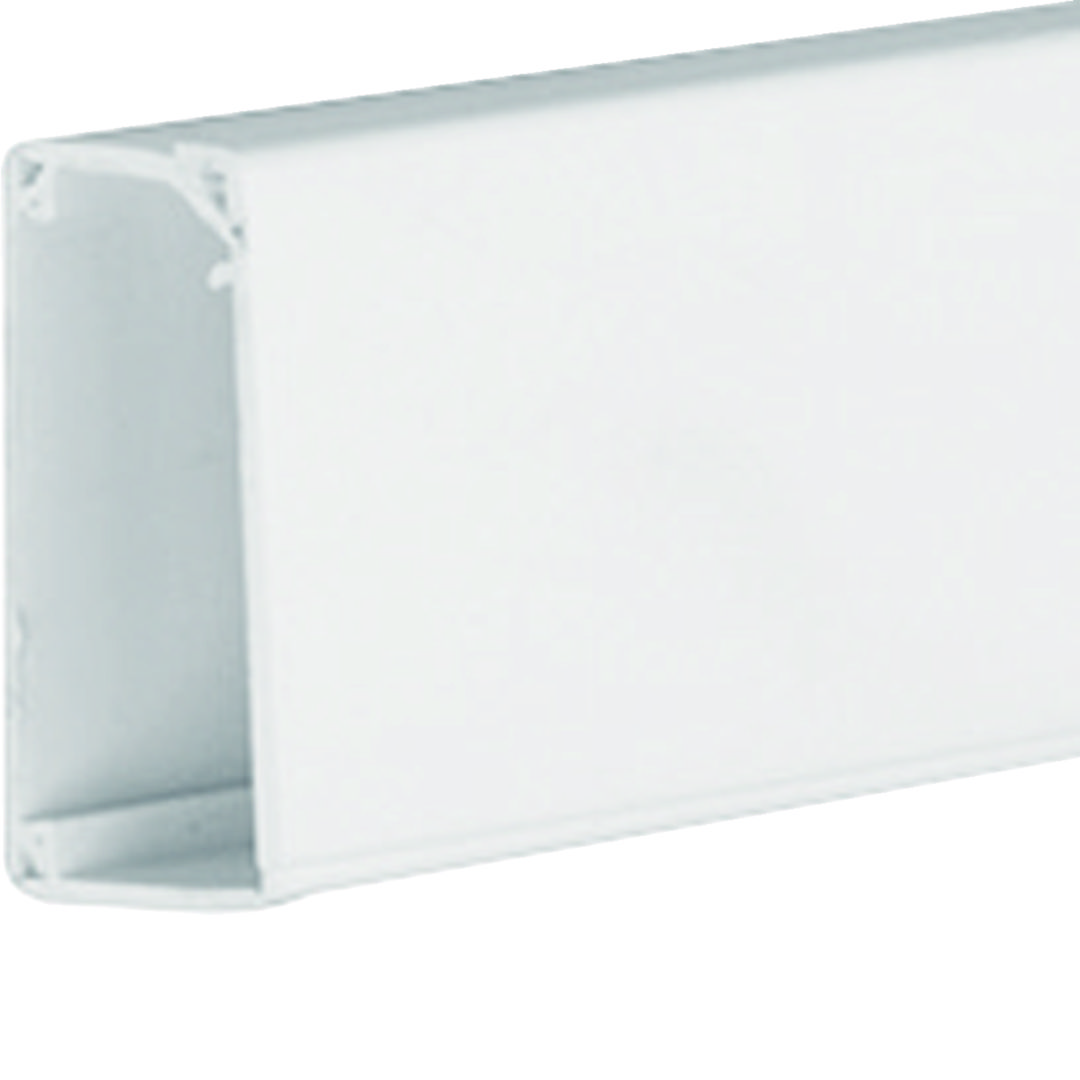

INSTALLATION TRUNK TEHALIT.LF LFR20035 PVC 18X33 20M ADH WHT
Product code
1475854
Installation duct LFR18x33x20000 delivered open on a reel with a porous mounting tape and bottom holes for attachment, made of flame-retardant PVC plastic, color traffic white RAL9016. The duct is delivered "flat" on a reel and is bent into shape during installation. Cutting the duct straight and into corners is excellently achieved with the optional cutting shears L5561. By taking the required length directly from the reel as needed, waste from the duct is avoided. This duct is particularly convenient for installations where short cable routes are routed, for example to sensors and actuators of alarm systems and door lock systems. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Mini/maxi trunking (EC000059)
Height18 mm
Width33 mm
Length20000 mm
Usable cross section700 mm²
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
Halogen freeno
Anti-bacterial treatmentno
Surface protectionUntreated
Suitable for circuit integrityno
ColourWhite
Transparentno
RAL-number9016
Number of permanent partitions0
Number of plug-in partitions0
Product codes
SAPCLW959
STK1475854
PLC1475854
GTIN/EAN4012740013758
Manufacturer part numberLFR2003509016A
Vendor material number1475854
Basic information
Package measurements (L x W x H)1000 x 35 x 20 mm
Package volume0.7 l
Package weight0.222 kg
Base unitMeter
Package units20 / 720
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
Documents (6)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.
GWP, unitMeter
Source for GWP dataEPD
