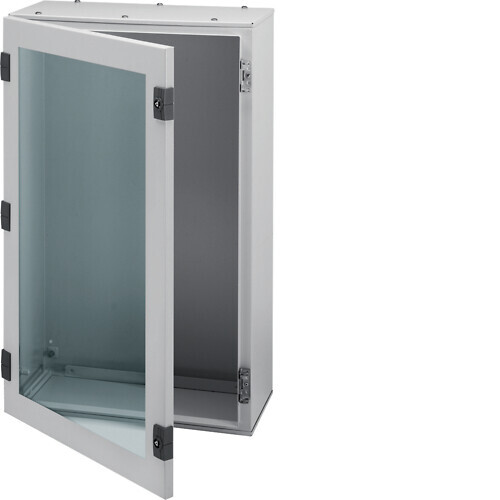

MOUNTING ENCLOSURE FE FL161A 500x400x160 IKKOVI IP65
Product code
3427042
Orion Plus distr. glaz. door 500X400X160
The metallic Orion Plus enclosure with a windowed door is well suited for demanding industrial and commercial building distribution, grouping, and automation center installations requiring visibility of the equipment behind the door without opening it. The enclosure can be equipped with a mounting plate. This powder-coated gray enclosure has dimensions of 500x400x160 mm and an IP65 protection rating. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Empty cabinet (EC000058)
Mounting methodSurface mounted
Type of coveringDoor
Cover modelClosed
Type of doorSingle
Transparent cover/dooryes
With lockyes
Nominal current (In)630 A
Height500 mm
Width400 mm
Depth160 mm
Built-in depth160 mm
Inner depth160 mm
Material plate thickness cabinet1.2 mm
Material plate thickness door/cover1.5 mm
ColourGrey
Product codes
SAPAEF148
STK3427042
PLC3427042
GTIN/EAN3250610674208
Manufacturer part numberFL161A
Vendor material number3427042
Basic information
Package measurements (L x W x H)180 x 420 x 550 mm
Package volume41.58 l
Package weight9.5 kg
Base uniteach
Package units1 / 36
Package contents–
UNSPSC39121103
BrandHAGER
VendorUTU OY
Documents (7)
Certificates
Images
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0004
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
