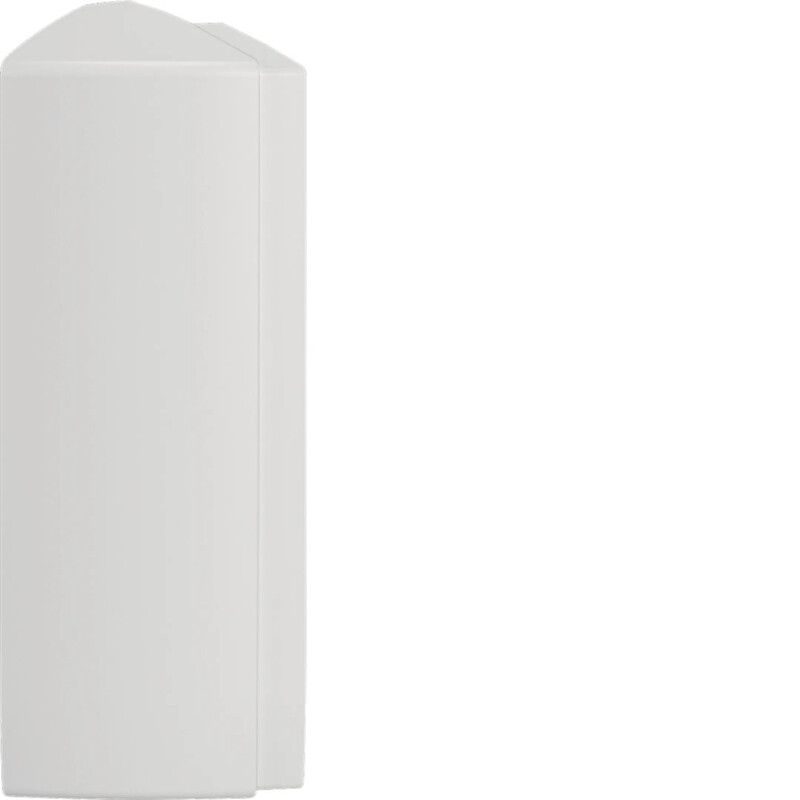

INTERN CORNER EXT TEHALIT GBD GBD501904E HF GBD 56X204 WHITE
Product code
1476238
The corner extension made from halogen-free ABS plastic conveniently extends the maximum adjustable internal angle from 97° to 140°. Thanks to its material, the product is suitable for use with both plastic and aluminum conduits. The profiled part covering the edges of the conduit body hides irregularities at the conduit cut and ensures a neat installation. Compliance with EN 50085-1 and EN 50085-2-1. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Inner corner for wall duct (EC000867)
Width204 mm
Depth56 mm
ShapeAsymmetric
ModelMoulded hood
Angle97-140 °
MaterialPlastic
Material qualityOther
Halogen freeyes
Anti-bacterial treatmentno
Surface protectionUntreated
ColourWhite
RAL-number9016
With protective foilno
Product codes
SAPCQC083
STK1476238
PLC1476238
GTIN/EAN4012740015356
Manufacturer part numberGBD501904E9016
Vendor material number1476238
Basic information
Package measurements (L x W x H)80 x 80 x 220 mm
Package volume1.408 l
Package weight0.001 kg
Base uniteach
Package units1 / 4 / 576
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
