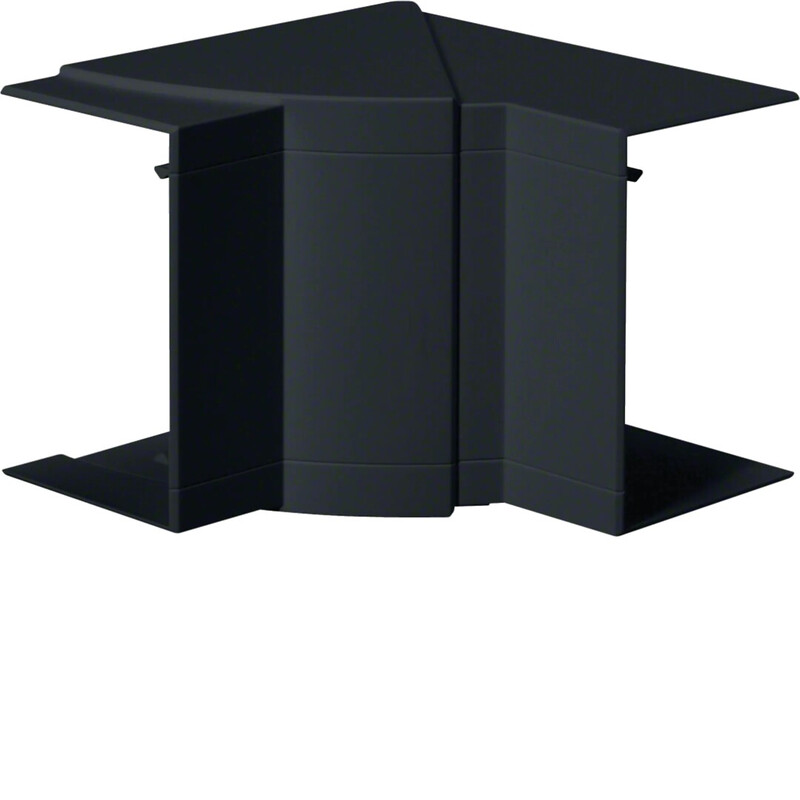

INTERNAL CORNER BRP651004 PVC BRP651001 BLACK
Product code
1475704
Internal corner,BRP/BRAP65100,black
Adjustable internal corner for duct BRP 65x100. The fitting is mounted on top of the duct to neatly cover the joints between the duct and its cover. Adjustable angle range of 85–95° to compensate for wall corner inaccuracies. Material: halogen-free PC/ABS plastic. Color: graphite black RAL9011. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Inner corner for wall duct (EC000867)
Width100 mm
Depth65 mm
ShapeSymmetric
Number of covers0
Cover width 10 mm
Cover width 20 mm
Cover width 30 mm
ModelMoulded hood

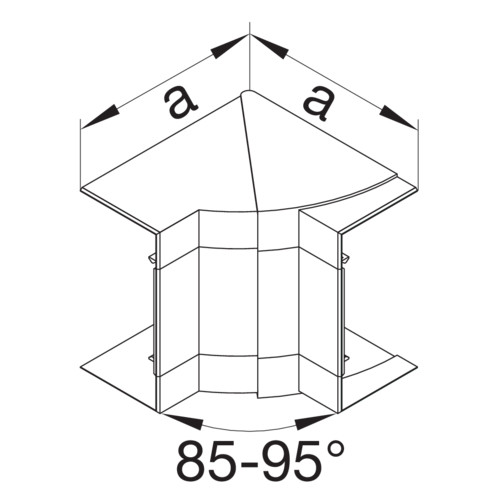

Angle85-95 °
MaterialPlastic
Material qualityOther
Halogen freeyes
Anti-bacterial treatmentno
Surface protectionWet varnished
ColourBlack
Product codes
SAPANT822
STK1475704
PLC1475704
GTIN/EAN4012740856089
Manufacturer part numberBRP651004H9011
Vendor material number1475704
Basic information
Package measurements (L x W x H)100 x 100 x 105 mm
Package volume1.05 l
Package weight0.127 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
