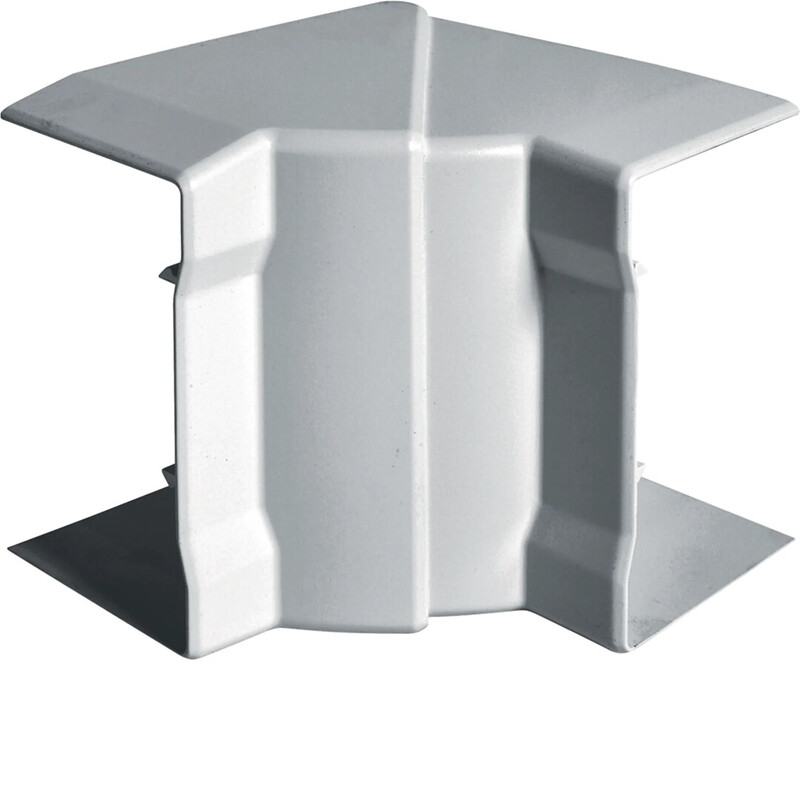

INTERNAL CORNER TEHALIT GBA GBD500854 HF GBD(A) 56X85 ALU
Product code
1476562
The inner corner made from halogen-free ABS plastic facilitates the installation of cable duct routes at corners. The corner piece is adjustable between 83 and 97 degrees. The adjustment range can be extended with a separately orderable extension piece for the inner corner. Due to its material, the product is suitable for use with both plastic and aluminum cable ducts. The profiled part that fits over the edges of the duct housing covers irregularities at the duct cut and ensures a neat installation. Compliance with EN 50085-1 and EN 50085-2-1. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Inner corner for wall duct (EC000867)
Width85 mm
Depth56 mm
ShapeSymmetric
Number of covers0
ModelMoulded hood
Angle83-97 °
MaterialPlastic
Material qualityOther
Halogen freeyes
Anti-bacterial treatmentno
Surface protectionWet varnished
ColourAluminium
With protective foilno
With duct connectorno
Bottom perforationno
Product codes
SAPCUE336
STK1476562
PLC1476562
GTIN/EAN4012740023412
Manufacturer part numberGBD500854ALU
Vendor material number1476562
Basic information
Package measurements (L x W x H)120 x 95 x 120 mm
Package volume1.368 l
Package weight0.08 kg
Base uniteach
Package units1 / 5 / 360
Package contents–
UNSPSC39131713
BrandHAGER
VendorUTU OY
