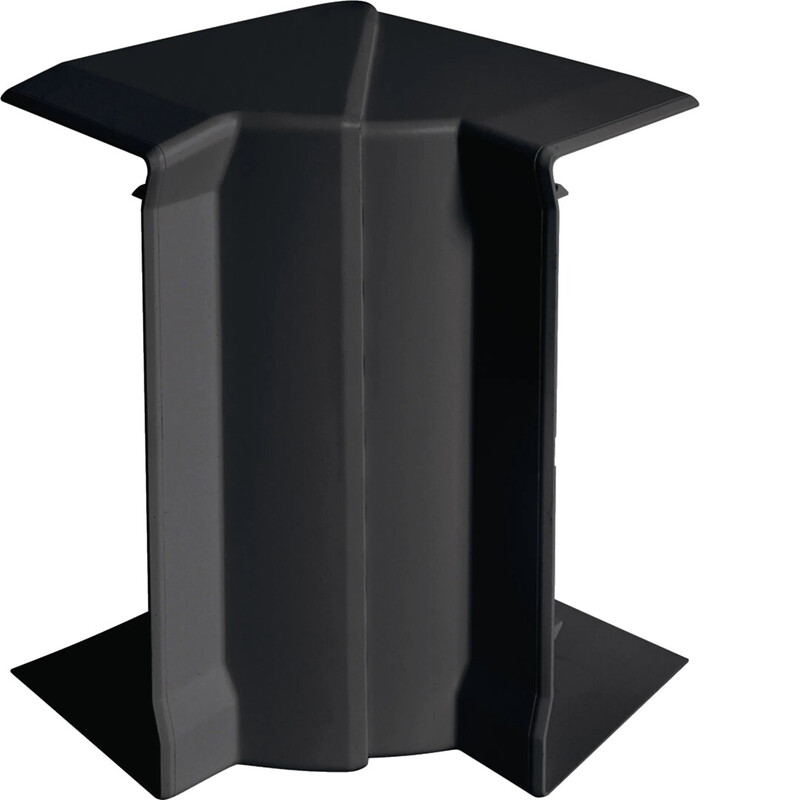

INTERNAL CORNER TEHALIT GBD GBD501314 HF GBD(A) 56X134 BLK
Product code
1476251
The inner corner made from halogen-free ABS plastic facilitates the installation of cable duct routes at corners. The corner piece is adjustable between 83 and 97 degrees. The adjustment range can be extended with a separately orderable extension piece for the inner corner. Due to its material, the product is suitable for use with both plastic and aluminum cable ducts. The profiled part that fits over the edges of the duct housing covers irregularities at the duct cut and ensures a neat installation. Compliance with EN 50085-1 and EN 50085-2-1. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Inner corner for wall duct (EC000867)
Width134 mm
Depth56 mm
ShapeAsymmetric
Number of covers0
ModelMoulded hood
Angle83-97 °
MaterialPlastic
Material qualityOther
Halogen freeyes
Anti-bacterial treatmentno
Surface protectionUntreated
ColourBlack
RAL-number9011
With protective foilno
With duct connectorno
Product codes
SAPCUE329
STK1476251
PLC1476251
GTIN/EAN4012740023498
Manufacturer part numberGBD5013149011
Vendor material number1476251
Basic information
Package measurements (L x W x H)120 x 120 x 140 mm
Package volume2.016 l
Package weight0.08 kg
Base uniteach
Package units1 / 5 / 360
Package contents–
UNSPSC39131713
BrandHAGER
VendorUTU OY
