INTERNAL CORNER TEHALIT R3021 FWK3E 50X60 T.WHITE
Product code
1476164

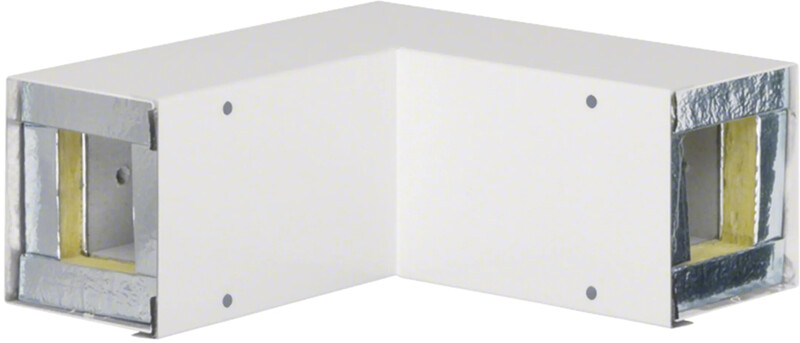

Internal corner for fire protection duct FWK3E5006009016 for direction changes in fire protection duct installations. The profile is equipped with female connectors for duct connections. Surface material is steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Inner corner for fire-resistant duct (EC002661)
Angle90 °
Outer height88 mm
Outer width100 mm
Inner height50 mm
Inner width59 mm
Usable cross section2950 mm²
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS432
STK1476164
PLC1476164
GTIN/EAN4012740020022
Manufacturer part numberR30219016
Vendor material number1476164
Basic information
Package measurements (L x W x H)240 x 240 x 100 mm
Package volume5.76 l
Package weight3.62 kg
Base uniteach
Package units1 / 60
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
