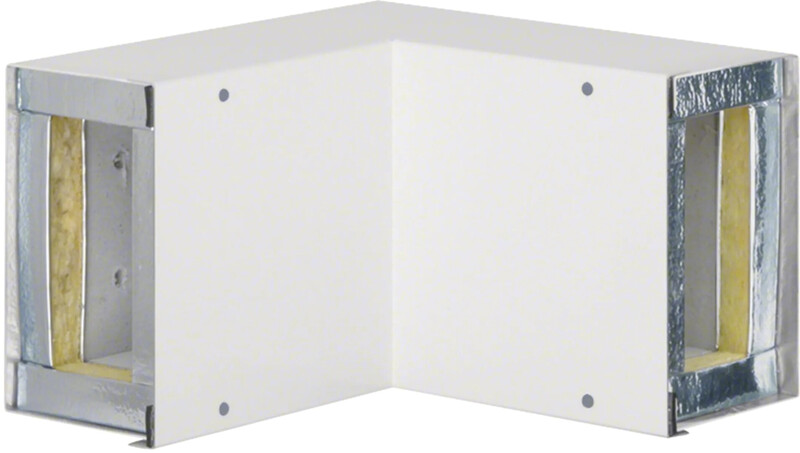

INTERNAL CORNER TEHALIT R3031 FWK3E 50X110 T.WHITE
Product code
1476170
Internal corner for fire protection duct FWK3E5011009016, for direction changes in fire protection duct installations. The profile is equipped with female connectors for duct connections. Surface material is steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Inner corner for fire-resistant duct (EC002661)
Angle90 °
Outer height88 mm
Outer width150 mm
Inner height50 mm
Inner width109 mm
Usable cross section5450 mm²
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS438
STK1476170
PLC1476170
GTIN/EAN4012740020084
Manufacturer part numberR30319016
Vendor material number1476170
Basic information
Package measurements (L x W x H)240 x 240 x 150 mm
Package volume8.64 l
Package weight4.99 kg
Base uniteach
Package units1 / 48
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
