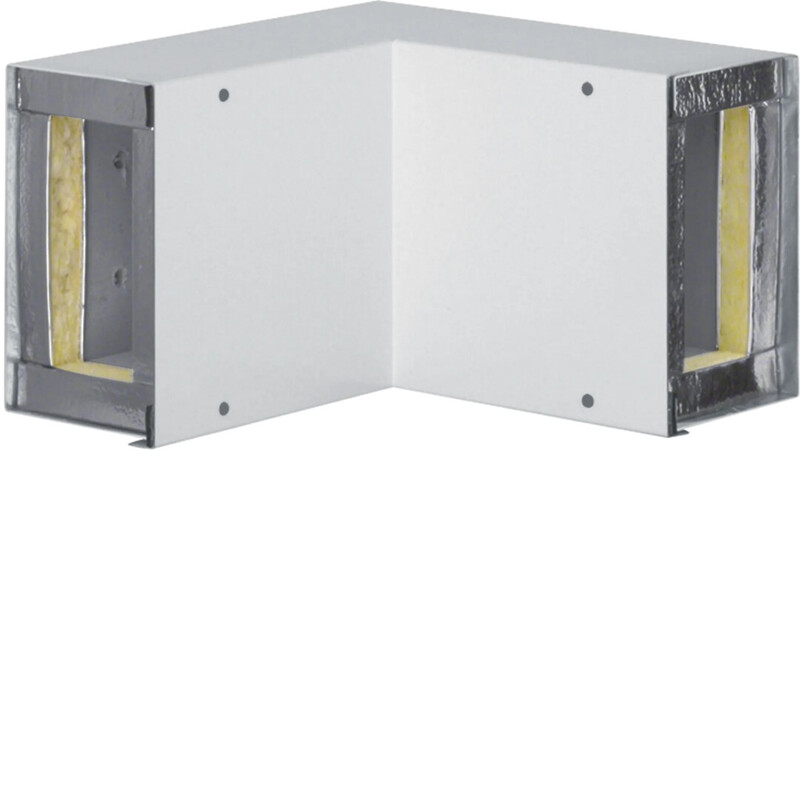

INTERNAL CORNER TEHALIT R3051 FWK3E 102X160 T.WHITE
Product code
1476182
Internal corner for fire protection duct FWK3E9916009016 for direction changes in fire protection duct installations. The profile piece is equipped with female connectors for duct connections. Surface material is steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Inner corner for fire-resistant duct (EC002661)
Angle90 °
Outer height142 mm
Outer width200 mm
Inner height102 mm
Inner width159 mm
Usable cross section16218 mm²
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS449
STK1476182
PLC1476182
GTIN/EAN4012740020206
Manufacturer part numberR30519016
Vendor material number1476182
Basic information
Package measurements (L x W x H)295 x 295 x 200 mm
Package volume17.405 l
Package weight8.4 kg
Base uniteach
Package units1 / 24
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
