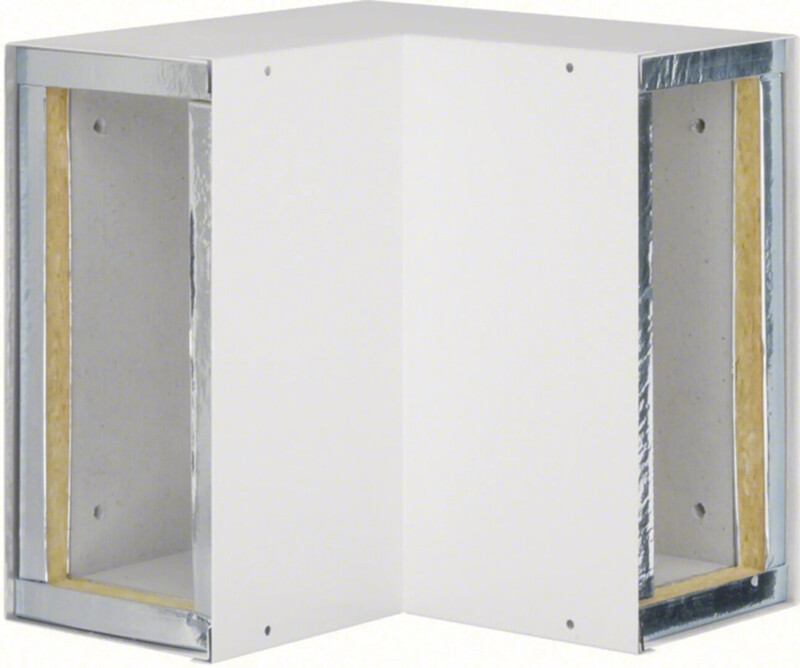

INTERNAL CORNER TEHALIT R3061 FWK3E 102X260 T.WHITE
Product code
1476188
Internal corner for fire protection duct FWK3E9926009016 for direction changes in fire protection duct installations. The profile is equipped with female connectors for duct connections. Surface material is steel over fire-resistant gypsum board insulation. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Inner corner for fire-resistant duct (EC002661)
Angle90 °
Outer height142 mm
Outer width300 mm
Inner height102 mm
Inner width259 mm
Usable cross section26418 mm²
SheathingSteel
Surface protectionCoated
ColourWhite
RAL-number9016
Partitions possibleyes
Cover attachmentScrew tight
Product codes
SAPCPS455
STK1476188
PLC1476188
GTIN/EAN4012740020268
Manufacturer part numberR30619016
Vendor material number1476188
Basic information
Package measurements (L x W x H)295 x 295 x 300 mm
Package volume26.108 l
Package weight10.7 kg
Base uniteach
Package units1 / 12
Package contents–
UNSPSC39121302
BrandHAGER
VendorUTU OY
