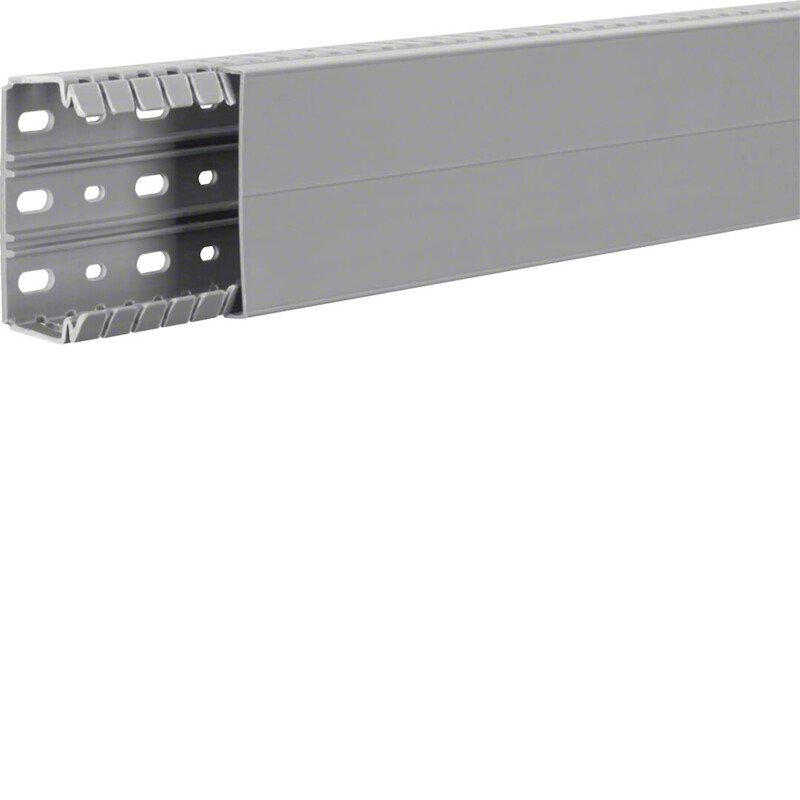

SLOTTED TRUNKING BA7 40X80 GREY

BA7 conduit system

• teeth breakable without tools down to the base, starting from a height of 40 mm and width of 40 mm
• tooth spacing 12.5 mm
• side openings for conductors up to 6 mm²
• base holes according to EN 50085
• third row of base holes starting from channel width of 80 mm
• one cable clip for all channels starting from width of 40 mm and height of 40 mm
• second cable clip level starting from 60 mm channel height
• blue channels for distinguishing special systems
• UL listed, File No. 48414
• CSA listed, File No. 22009
• self-extinguishing according to UL94 V0
• temperature resistance -5 °C ... +60 °

This product description is an automated translation of the original Finnish description.
