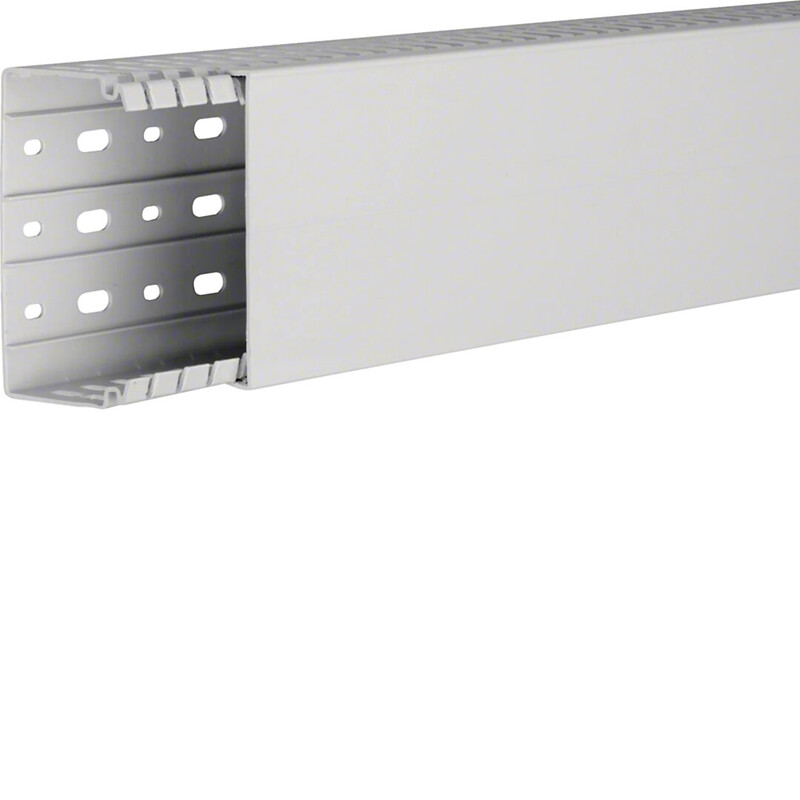

WIRE RACE-WAY HA7 60X100X2000 PC/ABS LGRAY

Product code
1417772
slottet panel trunking HA7 60x100, lg

Conduit HA7 60 x 100 x 2000 mm with bottom holes. Material: halogen-free PC/ABS plastic with improved fire safety, color light gray RAL7035. Temperature resistance -25 °C / +90 °C. The channel cover is easy to attach and remains securely closed even when the channel is full. Side openings for conductors up to 6 mm² without breaking the ribs. The channel can be equipped with separately orderable cable holders.

Features
  • dimensions: 60 x 100 x 2000 mm
  • material: halogen-free PC/ABS plastic
  • color: light gray RAL7035
  • temperature resistance: -25 °C / +90 °C
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Slotted cable trunking system (EC000012)
MaterialAcrylonitrile butadiene styrene (ABS)
Height60 mm
Width100 mm
Length2000 mm
Diameter0 mm
Distance of slots6.5 mm
Slit width6 mm
Type of side wallSlotted
Halogen freeyes
Self-extinguishingyes
Flexibleno
Usable cross section4608 mm²
Type of fasteningBottom perforation
With coveryes
ColourGrey

Product codes

SAPAIO386
STK1417772
PLC1417772
GTIN/EAN4012740199223
Manufacturer part numberHA760100
Vendor material number1417772

Basic information

Package measurements (L x W x H)1000 x 100 x 60 mm
Package volume6 l
Package weight0.677 kg
Base unitMeter
Package units2 / 16 / 432
Package contents
UNSPSC39121302
BrandHAGER
VendorUTU OY
