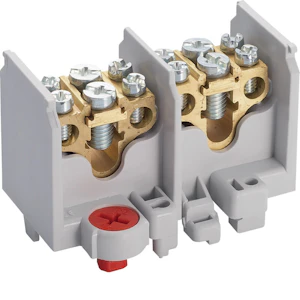

JUNCTION TERMINAL K22 2-POLE 2X35MM2
Product code
1914071
Main Line branch term. 2 p. 1x35²/2x25²
Branch connector for main circuits, 2-pole, 2 outputs per pole
- standards: DIN VDE 0603 part 2
- mounting: horizontal on 35 mm DIN rail
- screw terminal: +/-, PZ 2
- AC 400 V
- brass terminals
Input:
- 35 mm² per pole, 100 A
Output:
- 25 mm² semi-flexible
- 16 mm² fine-stranded (with sleeve) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Main line branch terminal (EC000275)
Number of poles2
Nominal current100 A
Connection typeScrewing
Mounting methodScrew
Number of inputs2
Number of outputs4
Contact safeno
Height53 mm
Width77 mm
Depth40 mm
Product codes
SAPALN659
STK1914071
PLC1914071
GTIN/EAN4010330730627
Manufacturer part numberK22
Vendor material number1914071
Basic information
Package measurements (L x W x H)40 x 80 x 40 mm
Package volume0.128 l
Package weight0.187 kg
Base uniteach
Package units1 / 2 / 2000
Package contents–
UNSPSC39121421
BrandHAGER
VendorUTU OY
