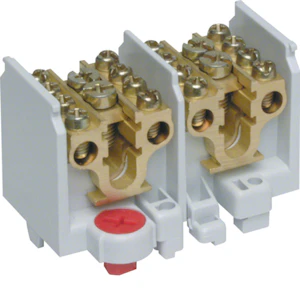

JUNCTION TERMINAL K25A 2-POLE 2X35MM2
Product code
1914072
Main line branch term. 2 p. 1x35²/4x25²
Branch connector for main circuits, 2-pole, 4 outputs per pole
- standards: DIN VDE 0603 part 2
- mounting: horizontal on 35 mm DIN rail
- screw terminal: +/-, PZ 2
- AC 400 V
- brass terminals
Input:
- 35 mm² per pole, 100 A
Output:
- 25 mm² semi-flexible
- 16 mm² fine-stranded (with sleeve) This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Main line branch terminal (EC000275)
Number of poles2
Nominal current100 A
Connection typeScrewing
Mounting methodScrew
Number of inputs1
Number of outputs4
Contact safeno
Height53 mm
Width77 mm
Depth40 mm
Product codes
SAPALN660
STK1914072
PLC1914072
GTIN/EAN3250613780210
Manufacturer part numberK25A
Vendor material number1914072
Basic information
Package measurements (L x W x H)56 x 53 x 77 mm
Package volume0.229 l
Package weight0.265 kg
Base uniteach
Package units1 / 2 / 1000
Package contents–
UNSPSC39121421
BrandHAGER
VendorUTU OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.
GWP, uniteach
Source for GWP dataEPD
