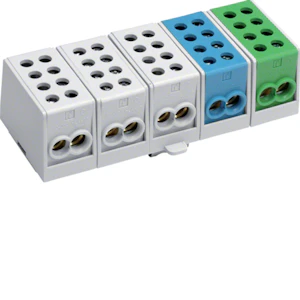

JUNCTION TERMINAL KH45A 5-POLE 2X35MM2 BGVA2
Product code
1914083
main line branch term. 5p., 2x35qmm
Branch connector for main circuits, 5-pole, touch-proof according to BGVA2 Features:
- 5 poles with 2 tunnel terminals
- 25 and 35 mm² This product description is an automated translation of the original Finnish description.
- 5 poles with 2 tunnel terminals
- 25 and 35 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Main line branch terminal (EC000275)
Number of poles5
Nominal current100 A
Connection typeScrewing
Mounting methodScrew
Number of inputs8
Number of outputs10
Suitable for solid conductorsyes
Suitable for stranded conductorsyes
Conductor cross section, input10-35 mm²
Conductor cross section, output1.5-25 mm²
Contact safeyes
Height38 mm
Width135 mm
Depth53 mm
Product codes
SAPALN671
STK1914083
PLC1914083
GTIN/EAN3250613780173
Manufacturer part numberKH45A
Vendor material number1914083
Basic information
Package measurements (L x W x H)35 x 135 x 50 mm
Package volume0.237 l
Package weight0.57 kg
Base uniteach
Package units1 / 10 / 500
Package contents–
UNSPSC39121421
BrandHAGER
VendorUTU OY
Documents (5)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0783
GWP, uniteach
Source for GWP dataEPD
