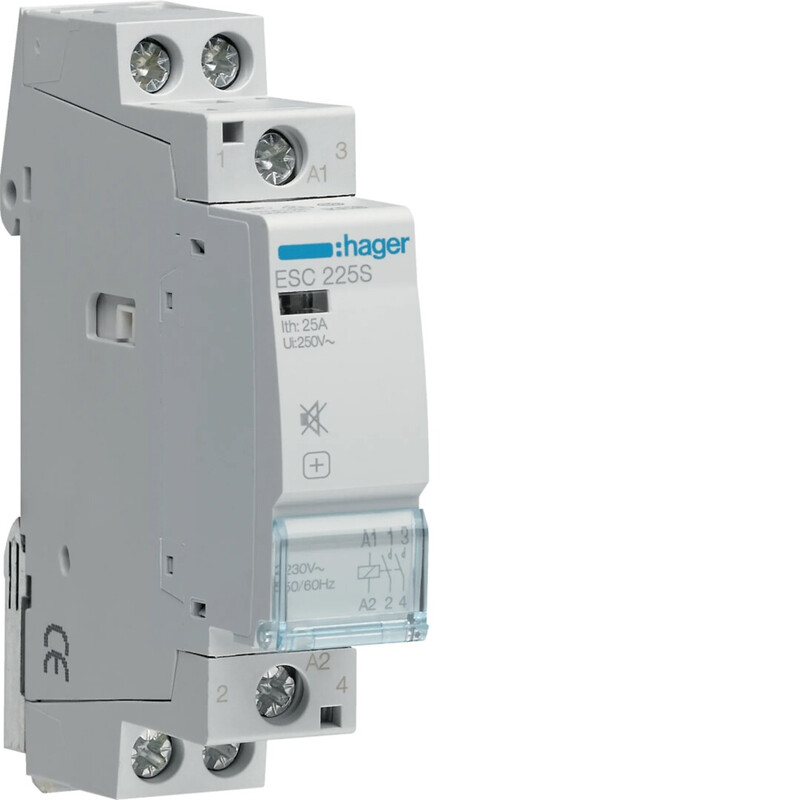

CONTACTOR ESC225S 2NO 25A c.230VAC
Product code
3748034
Humfree Contactor 25A, 2NO, 230V
Silent modular contactor for controlling lighting loads and other general loads. When installing multiple contactors in parallel, install the intermediate module LZ060 between every second contactor to ensure sufficient air circulation between the products.
- Standards: DIN EN 61095, VDE 0637-3
- Auxiliary contact ESC080可安装
- Contact status display via viewing window
- Contact protection in accordance with DIN VDE 0106 part 100
Tip: To select the appropriate contactor for switching a specific lighting group, use the convenient calculation program for contactors
https://www.utu.eu/ladattavat-aineistot/ohjelmistot/laskentaohjelma-kontaktoreille This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Installation contactor for distribution board (EC001653)
Rated operating voltage230-230 V
Rated operation current25 A
Rated excitation voltage230-230 V
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact2
Number of contacts as normally closed contact0
Max. incandescent lamp load1900 W
Max. load fluorescent lamp950 VA
Max. load fluorescent lamp (Duo circuit)1990 VA
Max. load fluorescent lamp (parallel compensated)810 VA
Slider for hand switchno
Built-in depth60 mm
Additional equipment possibleno
With day/night functionno
Product codes
SAPAME624
STK3748034
PLC3748034
GTIN/EAN3250612400034
Manufacturer part numberESC225S
Vendor material number3748034
Basic information
Package measurements (L x W x H)95 x 80 x 22 mm
Package volume0.167 l
Package weight0.105 kg
Base uniteach
Package units1 / 108 / 2592
Package contents–
UNSPSC39121529
BrandHAGER
VendorUTU OY
