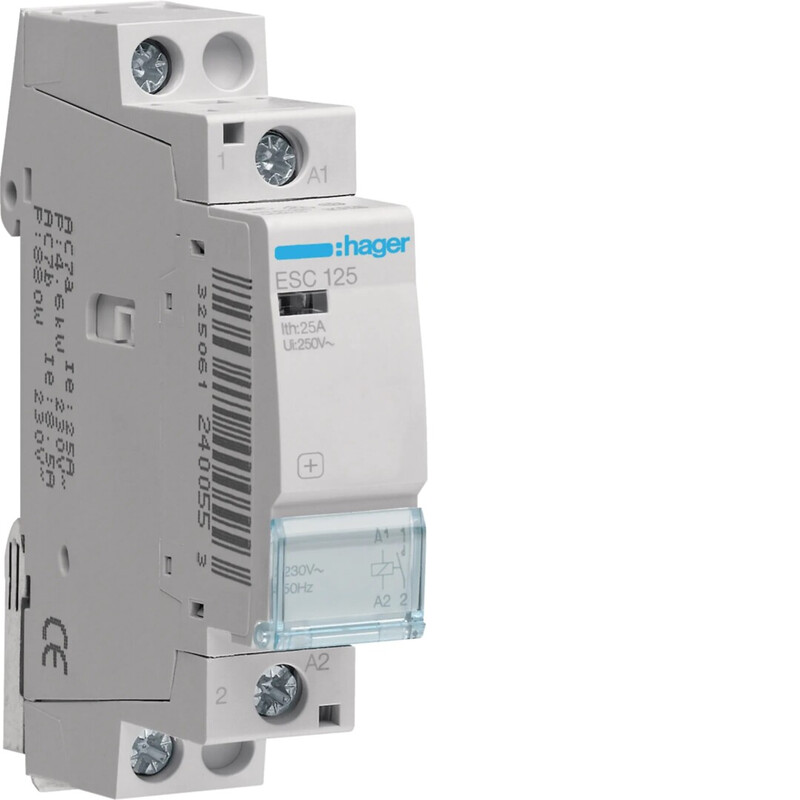

CONTACTOR ESC125 1NO 25A c.230VAC
Product code
3748071
Contactor 25A, 1NO, 230V
Module contactor for controlling lighting loads and other general loads. When installing multiple contactors in parallel, install the intermediate module LZ060 between the contactors to ensure sufficient air circulation between the products.
- Standards: DIN EN 61095, VDE 0637-3
- Auxiliary contact ESC080 can be installed
- Contact status display via viewing window
- Contact protection according to DIN VDE 0106 part 100 This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Installation contactor for distribution board (EC001653)
Rated operating voltage230-230 V
Rated operation current25 A
Rated excitation voltage230-230 V
Voltage type (operating voltage)AC
Voltage type (excitation voltage)AC
Number of contacts as normally open contact1
Number of contacts as normally closed contact0
Max. incandescent lamp load1900 W
Max. load fluorescent lamp950 VA
Max. load fluorescent lamp (Duo circuit)1990 VA
Max. load fluorescent lamp (parallel compensated)810 VA
Slider for hand switchno
Built-in depth60 mm
Additional equipment possibleyes
With day/night functionno
Product codes
SAPAMF040
STK3748071
PLC3748071
GTIN/EAN3250612400553
Manufacturer part numberESC125
Vendor material number3748071
Basic information
Package measurements (L x W x H)20 x 100 x 80 mm
Package volume0.16 l
Package weight0.117 kg
Base uniteach
Package units1 / 108 / 2592
Package contents–
UNSPSC39121529
BrandHAGER
VendorUTU OY
