SWITCH 1930 7/10A/250V UR
Product code
2115540

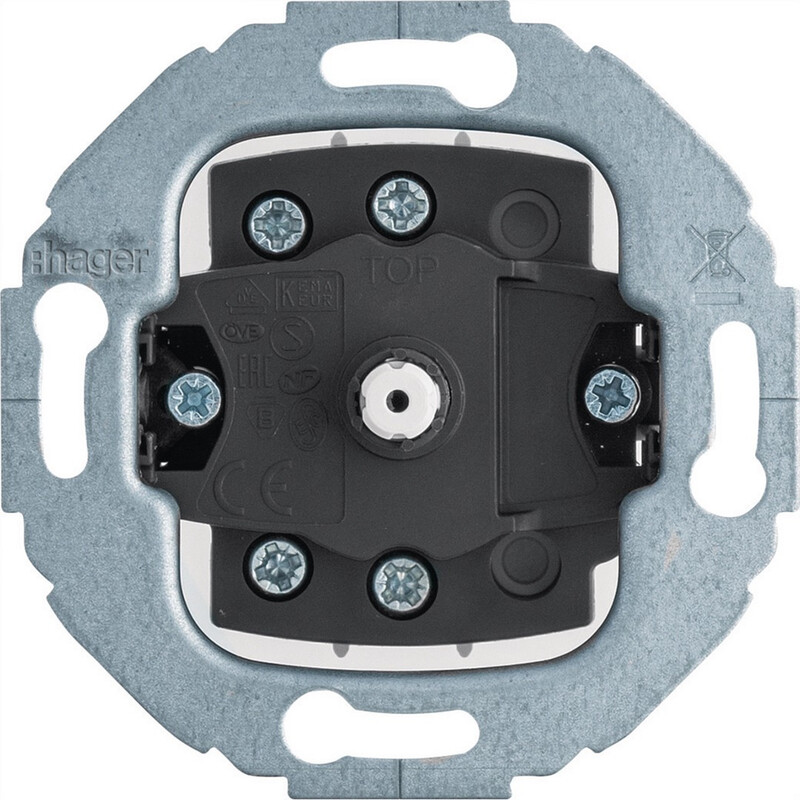

Cross-switch frame 10AX/250VAC, with screw terminals. Center plate or cover plate with turner for use with the selected fixture series Serie 1930, Glas, or R.classic. Used in stairway lighting circuits together with changeover switches when more than two control points are required for the same group. Control and searchlight functions can be conveniently added using a neutral wire or with indicator light units 168000 or 168001 without a neutral wire. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Installation switch (EC001590)
Wiring systemIntermediate switch
Method of operationTurn button
Assembly arrangementBasic element
Push button switchno
Number of rockers0
Mounting methodSurface mounted
Type of fasteningMounting with claw
With mounting plateno
MaterialPlastic
Material qualityDuroplast
Halogen freeyes
Anti-bacterial treatmentno
Surface protectionUntreated
Label space/information surfaceNo
LightingOptional
Product codes
SAPDQC523
STK2115540
PLC2115540
GTIN/EAN3250610090848
Manufacturer part numberWDE387703
Vendor material number2115540
Basic information
Package measurements (L x W x H)71 x 71 x 42 mm
Package volume0.212 l
Package weight0.072 kg
Base uniteach
Package units1 / 32 / 768
Package contents–
UNSPSC39122209
BrandHAGER
VendorUTU OY
Documents (5)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.0051
GWP, uniteach
Source for GWP dataEPD
