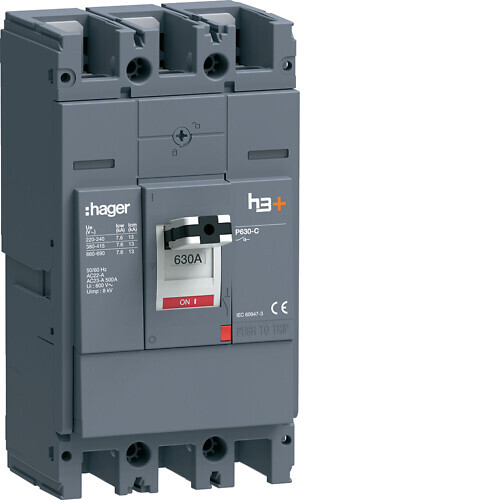

LOAD BREAK SWITCH P630 3P 630A
Product code
3637854
Load switch h3+ p630 3-pole 630A without protective relay for main switch operation This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationyes
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage220-690 V
Rated permanent current Iu630 A
Rated permanent current at AC-23, 400 V500 A
Rated permanent current at AC-21, 400 V630 A
Rated short-time withstand current lcw7.6 kA
Rated operation power at AC-23, 400 V508 kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Product codes
SAPCVF056
STK3637854
PLC3637854
GTIN/EAN3250613198756
Manufacturer part numberHCW630AR
Vendor material number3637854
Basic information
Package measurements (L x W x H)150 x 140 x 260 mm
Package volume5.46 l
Package weight5.57 kg
Base uniteach
Package units1 / 52
Package contents–
UNSPSC39121529
BrandHAGER
VendorUTU OY
Documents (4)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)891.7356
GWP, uniteach
Source for GWP dataEPD
