LATCHING PUSH BUTTON SVN312 1NO 16A
Product code
2317372
Latching 1NO Pushbutton
Push-button switch with normally closed contact, designed for mounting on a DIN rail. The switch is equipped with a label window for group and device labeling. Rated voltage 230VAC. Construction in accordance with IEC 62094-1, IEC 60947-1, contact protection in accordance with DIN VDE 0106 part 100. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Push button for distribution board (EC001546)
Number of contacts as normally closed contact0
Number of contacts as normally open contact1
Number of contacts as change-over contact0
Switching current16 A
Switching voltage230 V
Voltage typeAC
With signal lampno
Colour calotteOther
Max. lamp power0 W
Colour buttonGrey
Width in number of modular spacings1

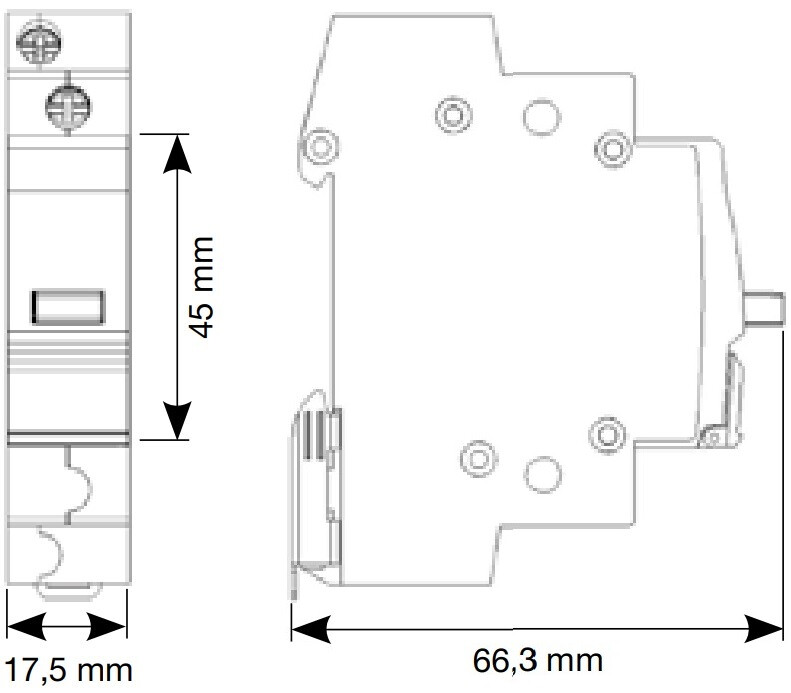

Built-in depth66 mm
Degree of protection (IP)IP20
Product codes
SAPADY714
STK2317372
PLC2317372
GTIN/EAN3250615721778
Manufacturer part numberSVN312
Vendor material number2317372
Basic information
Package measurements (L x W x H)85 x 17 x 73 mm
Package volume0.105 l
Package weight0.05 kg
Base uniteach
Package units1 / 12 / 144 / 3456
Package contents–
UNSPSC39121552
BrandHAGER
VendorUTU OY
