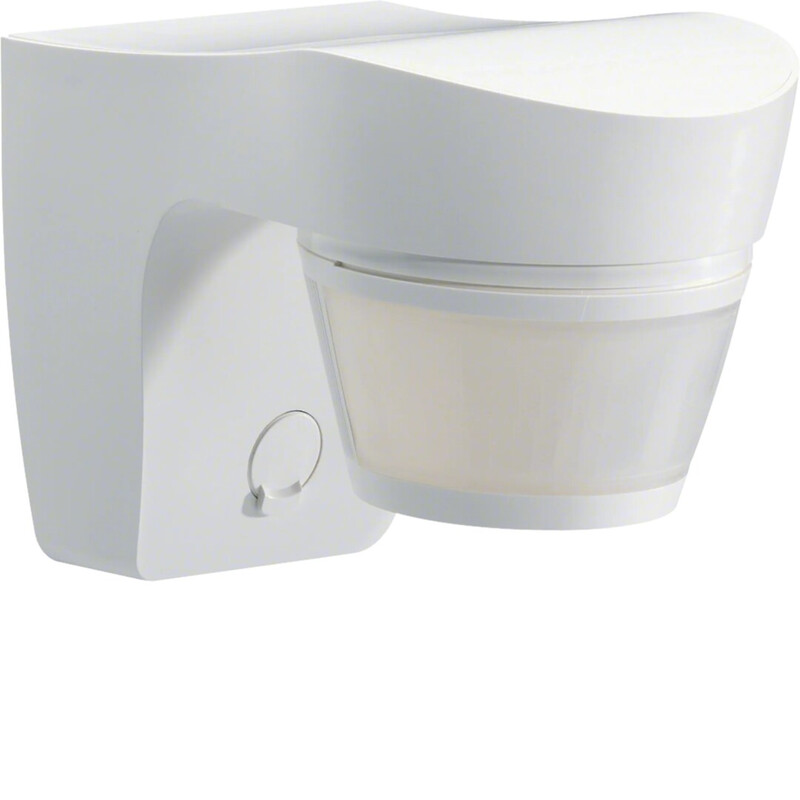

MOTION DETECTOR EE830 200 10A IP55 PSE WHITE
Product code
2613309
Motion detector 200° white
Motion sensor for outdoor use IP55, color white, detection range 200°, front detection area approx. 16 m. The sensor is equipped with a high-quality 10A relay contact suitable for switching energy-efficient lamps. The sensor can be mounted directly on a wall surface, or with the optional bracket EE825 for corner mounting or EE827 for ceiling mounting. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Sensor element for movement sensor/presence detector (EC000138)
Mounting methodSurface mounted
Constant light controlno
HVAC-controlno
Networkableyes
Suitable for wireless transmissionno
Creep-under protectionno
Mounting height4 m
Max. reach sideways6 m
Max. reach frontally16 m
Diameter reach on floor16 m
Response value sensitivity adjustableyes
Response value luminosity adjustableyes
Teach-function for response value luminosityyes
Dim function with dimmer basic elementno
Animal zoneno
Product codes
SAPAFD393
STK2613309
PLC2613309
GTIN/EAN3250612258321
Manufacturer part numberEE830
Vendor material number2613309
Basic information
Package measurements (L x W x H)110 x 95 x 140 mm
Package volume1.463 l
Package weight0.3 kg
Base uniteach
Package units1 / 12 / 288
Package contents–
UNSPSC46171608
BrandHAGER
VendorUTU OY
Documents (10)
Certificates
Brochures & documents
Links
Environment and safety
Sustainability categories
Energy efficiency
Features
emissions calculated according to EN 15821:2010Yes
Motion sensorYes
Twilight sensorYes
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.033
GWP, uniteach
Source for GWP dataEPD
