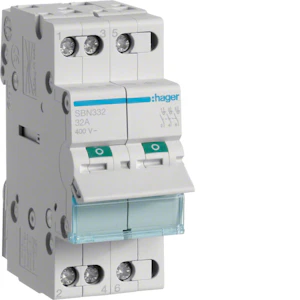

LOAD BREAK SWITCH LEVER SBN332 0-1 3P 32A 400VAC DIN
Product code
3637655
3P 32A Switch
Module switch, 3-pole 0-1, 32A, frequency: 50/60 Hz. Standard: EN 60669-3-4, EN 60947-3. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Main switch for distribution board (EC001545)
Switching functionOff switch
Number of contacts as normally open contact3
Number of contacts as normally closed contact0
Number of contacts as change-over contact0
Number of poles3
Rated current32 A
Rated voltage230 V
Min. rated voltage10 V
Rated switching capacity0.677 kA
Short-circuit breaking capacity (Icw)0.48 kA
Voltage typeAC
With signal lampno
Max. lamp power0 W
Width in number of modular spacings2
Built-in depth68 mm
Product codes
SAPAMR577
STK3637655
PLC3637655
GTIN/EAN3250615510143
Manufacturer part numberSBN332
Vendor material number3637655
Basic information
Package measurements (L x W x H)85 x 36 x 76 mm
Package volume0.233 l
Package weight0.127 kg
Base uniteach
Package units1 / 6 / 72
Package contents–
UNSPSC39122209
BrandHAGER
VendorUTU OY
